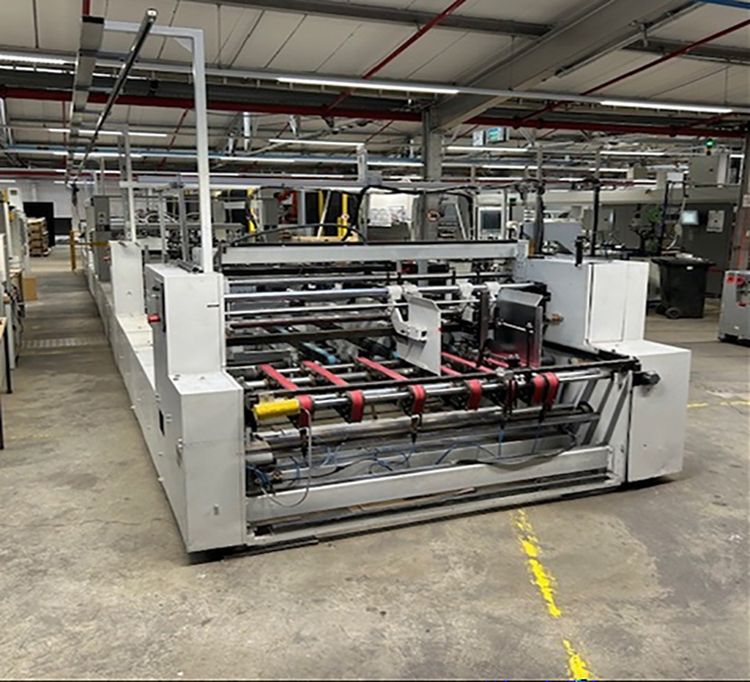

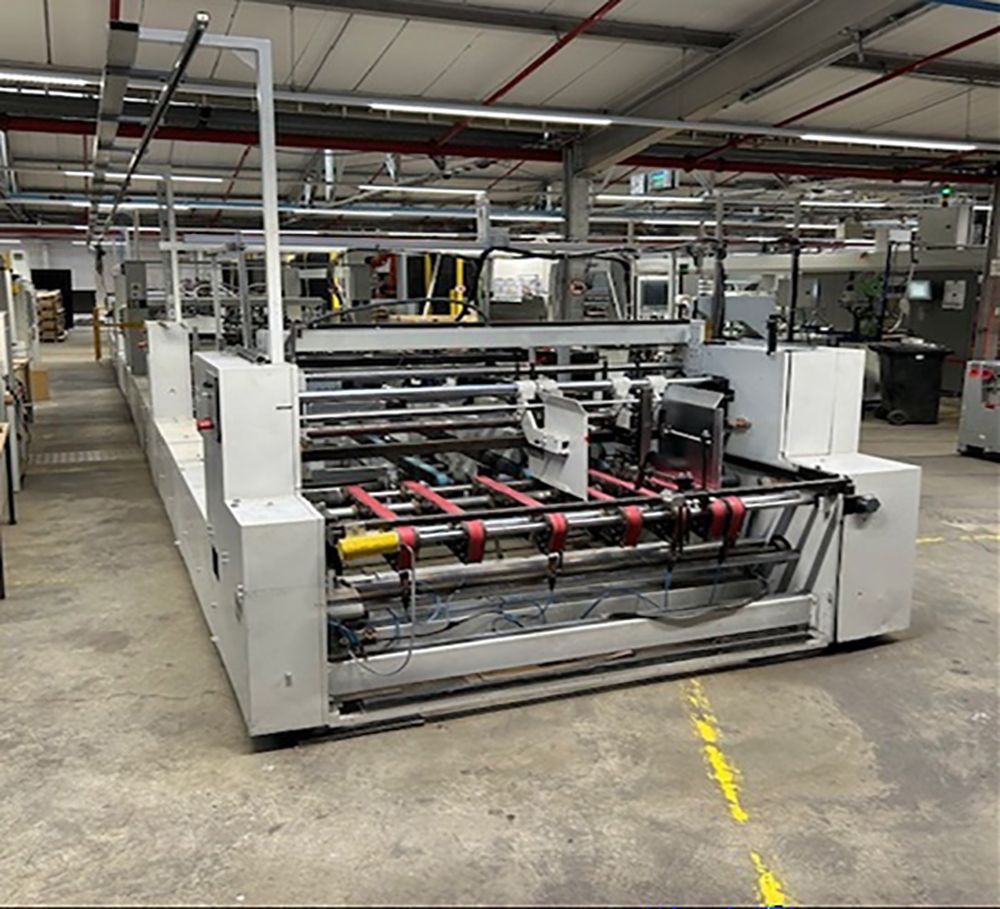

Bobst Domino 165 A3 MOT

Max. working width: 1,650 mm
Min. working width: 290 mm

Closing possibilities:
Straight-line, 3-point, mailing envelopes, multi-packaging, wrap-around packaging, crash-lock bottom
Electronic upper gluing system, hhs XT-E8, 8-channel with 4 PL 500 application heads
Optional left-side lower disc gluing unit
Feeder with vacuum belts, vibration unit and toothed gauge
Left and right pre-breaker
Kicker, counter
Pneumatically liftable accessory holder
Additional crash-lock bottom module with press
Additional central transport in the folding section
Additional alignment in the transfer station
Motorized format adjustment
Triple alignment at the press belt
Pneumatic, timed press belt

Special equipment:
Bump & Turn station for 90° rotation of blanks with integrated blank alignment
Hotmelt station hhs XMG-100-1x2 with 1 application head and 4 connections
1 Enpro unit with 1 tear strip
1 Enpro unit with 1 self-adhesive application

Max. power consumption: 93 kW
Compressed air requirement: 0.4 m³/min at 8 bar
Only the 4-point module is not functional.
A concrete offer for converting/upgrading this module is available for potential interested buyers.
