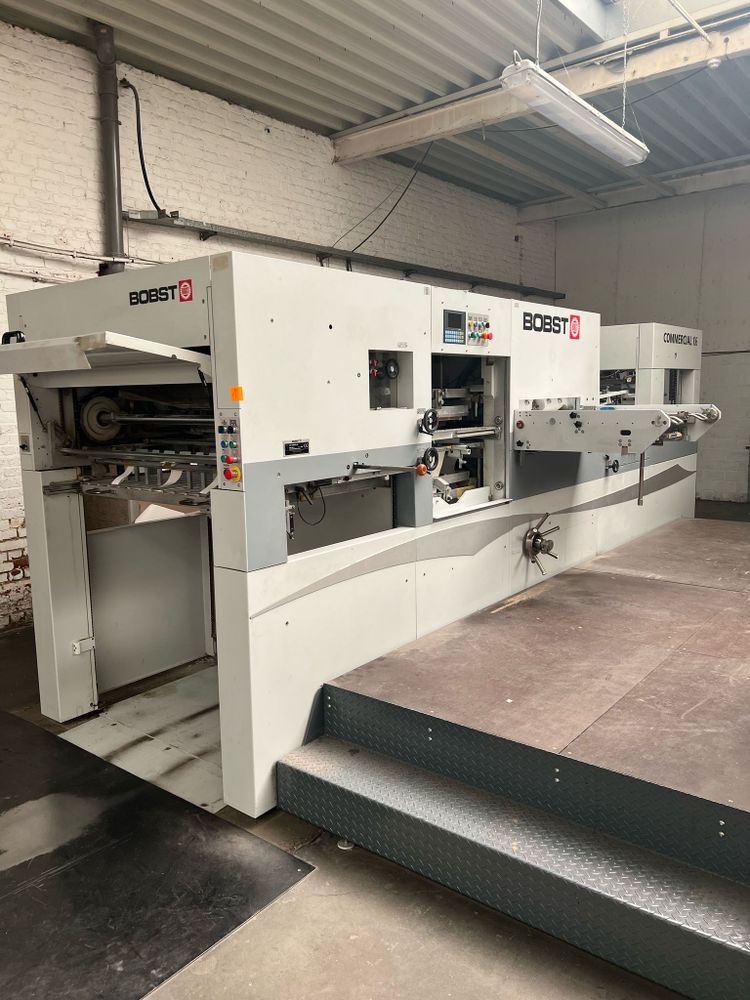

Bobst Commerical 106

Automatic Flatbed Die Cutting Machine with Stripping
Size Min: 350 x 400 mm / Max: 760 x 1060 mm640 mm
Maximum Mechanical Speed:* 8,000 sheets/hour
Maximum Cutting Force: 260 tons
Cutting Tolerance: ±0.15 mm
Processable Material Thickness: Paperboard: 80 – 2000 g/m² Corrugated board: maximum 4 mm (B-, E-flute)
Feeding System: Non-stop automatic
Automation Features: Automatic upper and lower gripper adjustments, Quick die change (Quick-Lock technology), - Motorized cutting pressure adjustment
Control Panel:Touchscreen operation, Program memory and automatic setup memory
CE standards, Safety cove
Machine Weight: approximately 22,000 kg
Machine Dimensions: approximately 10,500 mm (L) × 4,000 mm (W) × 2,500 mm (H)
