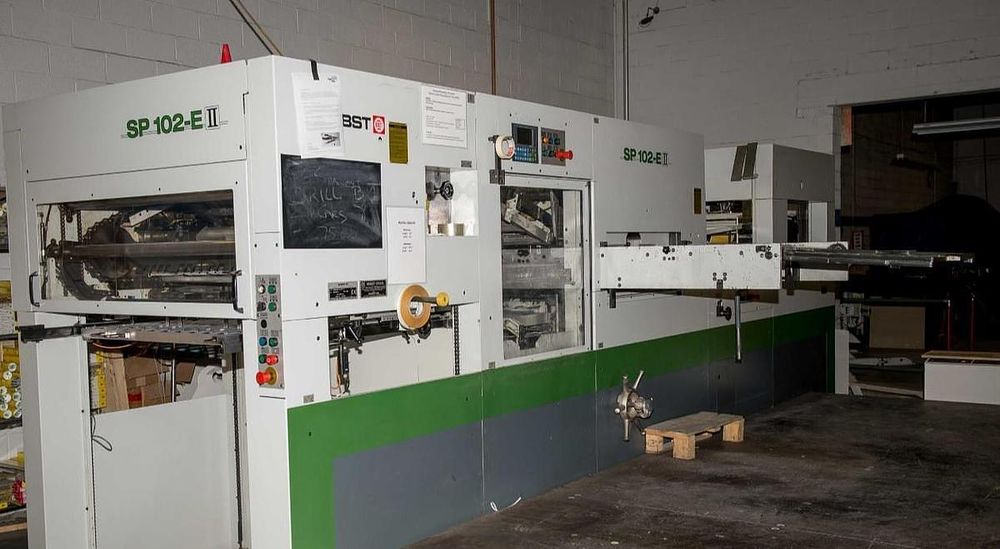

Bobst SP 102 EII

Die cutter with waste stripping
Maximum sheet size : 40 1/8” x 28 3/8” ( 1020 mm x 720 mm )
Minimum sheet size : 15 ¾” x 13 ¾” ( 400 mm x 350 mm)
Cutting force : 250 ton metric cutting pressure (275 US tons)
Maximum production rate : 7,500 sheets per hour
Convertible stock : .004” to .160”
Machine operating hours : 31,806 hours (Approx. 25 hours/week)

Equipment details :
• Manual non-stop feeder
• One (1) O.S. (operator side) and one (1) OOS (opposite operator side) pull guide
• Lower supporting plate
• One (1) cutting chase with quick locking
• Two (2) cutting plates
• Centerline system
• Bobst CUBE
• Double action waste stripping station
• One (1) upper stripping frame
• One (1) lower stripping frame
• One set of upper and lower stripping equipment to include crossbars,
pin holders and pins
• Non-stop delivery rack
• Operator platform
Machine is in very good condition and can be inspected under power.
