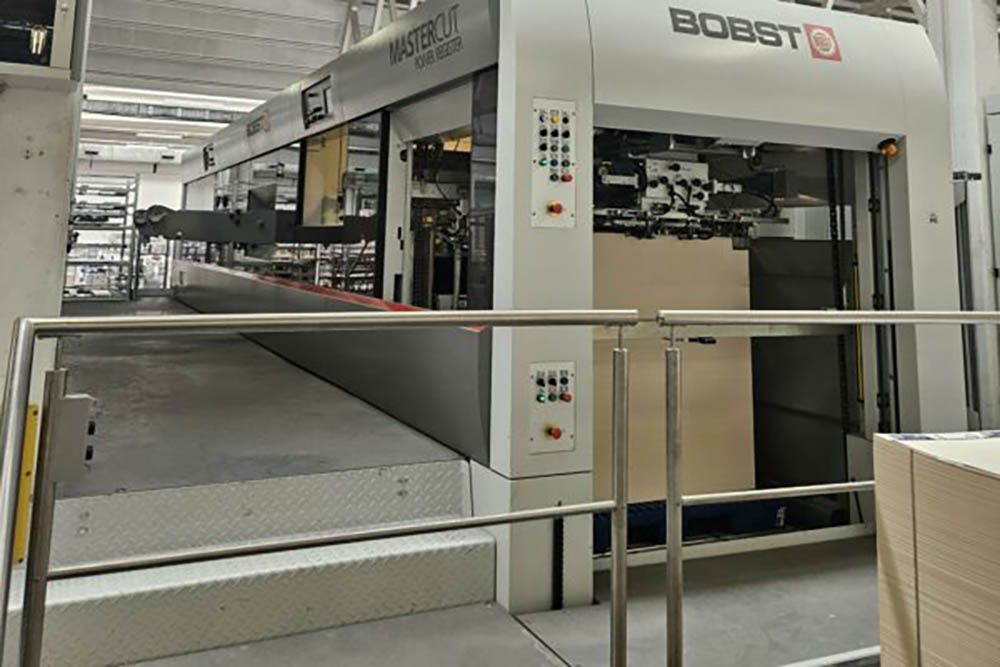

Bobst Mastercut 145 PER

Max. sheet size : 145
Min. sheet size : 58 x 45 cm
Paper : 80 g/m2
Solid board : up to 2000 g/ m2
Corrugated board : up to 5 mm
Speed : 9.500 sheet/hour
Cutting force : 600 T
Weight : 66.5 T

Equipped with:
Pallet feeder with Option Smart Feeder
-Auto format setting
Cube 3
Power register II
BOBST Electronic System
Automatic non-stop delivery
Double sheet detection
Central micrometer adjustment

Additional equipment:
Interface for APT Feeder (B-110.001)
Easy transfer (B-132.001)
Chase changer (B-133.001)
Non-stop feeder (C-112.003)
Additional suction device for the feeder (C-215.001)
Optional for heavy duty transport units on the feeding table (D-525-001)
Heavy duty compensation plate with holes (E-215.003)
Dynamic block for the upper cutting chase (F-100.001)
Positioning of the photocell during the transfer of the paper sheet through externing operator side command (F-115.001)
Automatic adjustable height of the non-stop delivery (H-106.001)
Automatic control of the blanked cuts (H-120.001)
Gipper edge expulsion control via photocell (H-125.001)
Feeder APT L-133.001with pits (L-139.001)
Interface for the connection with a quality check system (Q-115.001)
