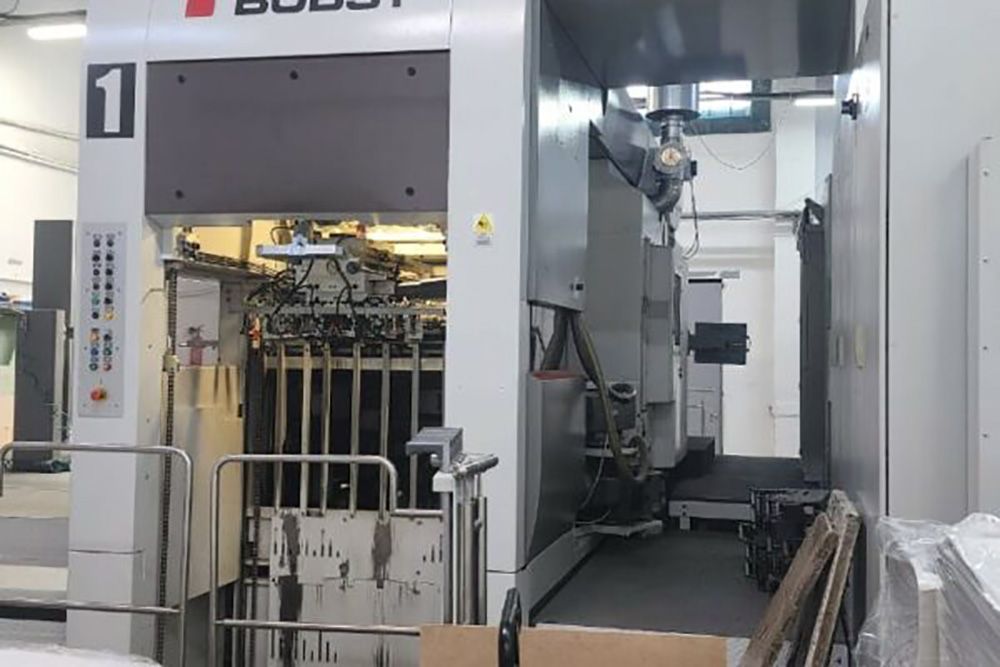

Bobst Masterfoil 106 PR

SPECIFICATIONS ACCORDING TO BOBST:
Max. sheet size : 106 x 76 cm
Min. sheet size : 40 x 35 cm
Paper : min. 70 g/m2
Solid board : up to 2000 g/m2
Corrugated board : up to 2 mm
Speed : 8.000 sheets/hour
Stamping force : 0 – 100 FTU**
Approx. total weight : 20 T
Adjustable temperature : 20 – 160°C
Zones individually controlled : 12
Reel diameter, max. : 250 mm
option : 160 mm
Web width : 50 – 1060 mm
option : 25 mm

Additional equipment:
B MACHINE
B-133.001 Chase changer
B-201.002 Elevated machine II by 420 mm
B-202.003 Platform for elevated machine II with safety barrier
B-203.002 Platform extension with gangway, feeder
B-203.003 Platform extension with gangway, delivery
B-301.001 Anti-static device for paper, incl. blowers and other anti-static elements at feeder
B-301.003 Anti-static device for foil, reduces the static electricity accumulated in the foil
B-501.010 Sheet braking device using Bernouilli system at the platen inlet and sheet braking device at BM station

J HOT FOIL STAMPING EQUIPMENT
J-120.001 Plate positioning rules
J-120.002 Eccentric fasteners for the dies
J-210.001 Foil Advance Computing System FACS
J-315.002 Venturi used foil streamliner

O OFF-PRESS
O-100.001 Control table

Q QUALITY CONTROL & RELATED SYSTEMS
Q-115.003 Interface enabling the connection of a unit for waste treatment

T TOOLING
T-130.001 Graduated rule
T-135-001 Honeycomb chase
