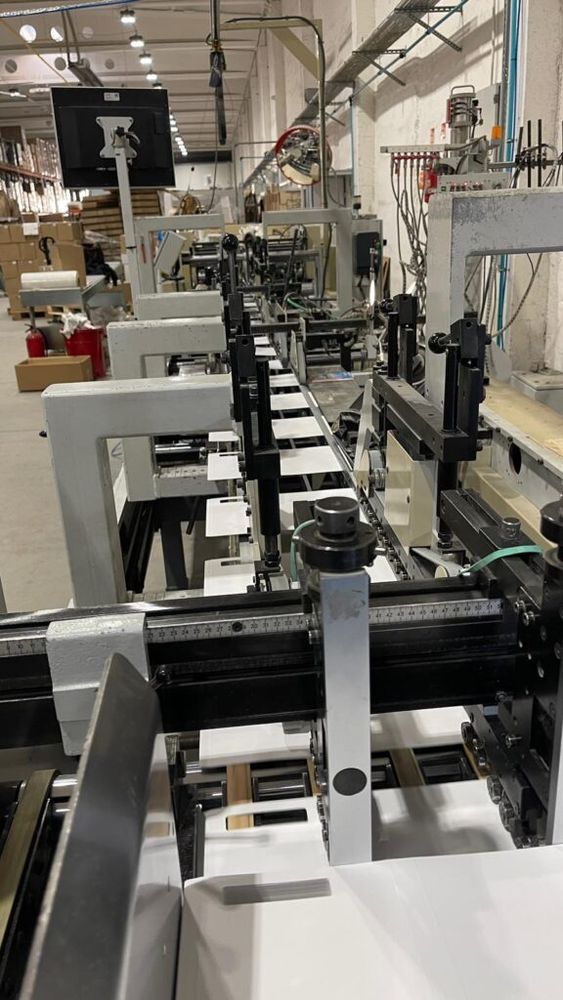

Bobst MEDIA 100 II-A2

Working Formats:
Maximum working width: 1000 mm
Minimum working width: 126 mm
Minimum board width before gluing: approx. 100 mm
Maximum unfolded box length: 600 mm
Minimum box length: 60 mm
Maximum format: at least 600 mm
Note: According to the operator, larger boxes may also be produced on this machine; final confirmation should be checked in the technical documentation.
Example: A format of at least 600 mm can be processed, based on 150 mm x 4 box walls plus glue flap.

Processable Materials:
Solid board: 100–600 g/m²
Corrugated board: B, N, F and E flute

Speed and Performance :
Mechanical speed: approx. 300–360 m/min

Folding and Box Types :
Folding system: Straight line
Crash-lock bottom: available
4- and 6-corner boxes: possible depending on configuration

Control System :
Electronic control unit: BOBST CUBE

Gluing System :
Lower gluing system: standard lower gluing wheel
Upper gluing system: electronic upper gluing system (e.g. HHS)
Cold glue guns: 6 units
Hot glue gun: 1 unit
Gluing points: gluing from 6 different application points
Additional feature: glue application via container wheel
Envelope gluing cassette: available

Equipment :
Prefolder section: available
Crash-lock bottom section: available
Counter / kicker: available
Handypack pressure section: available

Production Capabilities :
Envelope production
Advent calendar production
Folding carton box production
Flexible production for various box and packaging types

Machine Weight :
Approx. weight: 4,600–4,800 kg
