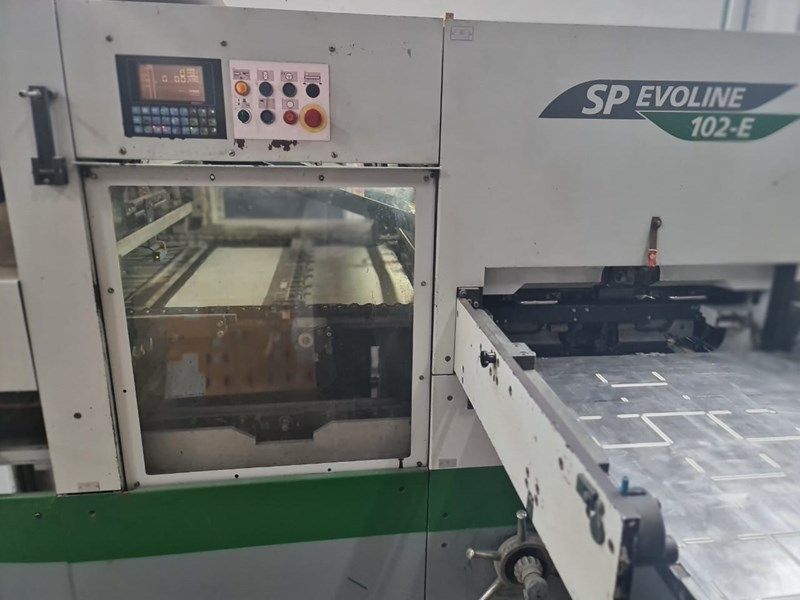

Bobst SP 102-E EVOLINE

Sheet size max: 720x1020 mm
Sheet size min.: 400x350 mm
Embossing size max.: 720x1020 mm
Stamping size max.: 705x1020 mm
Platen pressure max.: 250 tons
Production speed: 7.500 sheets/h.
Pile height (normal feeder): 1350 mm
Total power consumption: 30 kW
Space required: 5.75x3.96x2.11 m
Weight approx.: 14 t
Tape Driven Running in Wheels
Left and Right pull side lays
Quick Lock Chase
1 mm Cutting Plate System with Micro-Metric adjustment with Quick Lock Upper and Lower frames.
Bobst Cube screen Operator / machine interface.
Pre-set Counter
Non-stop in feeder + delivery
Stripping station
