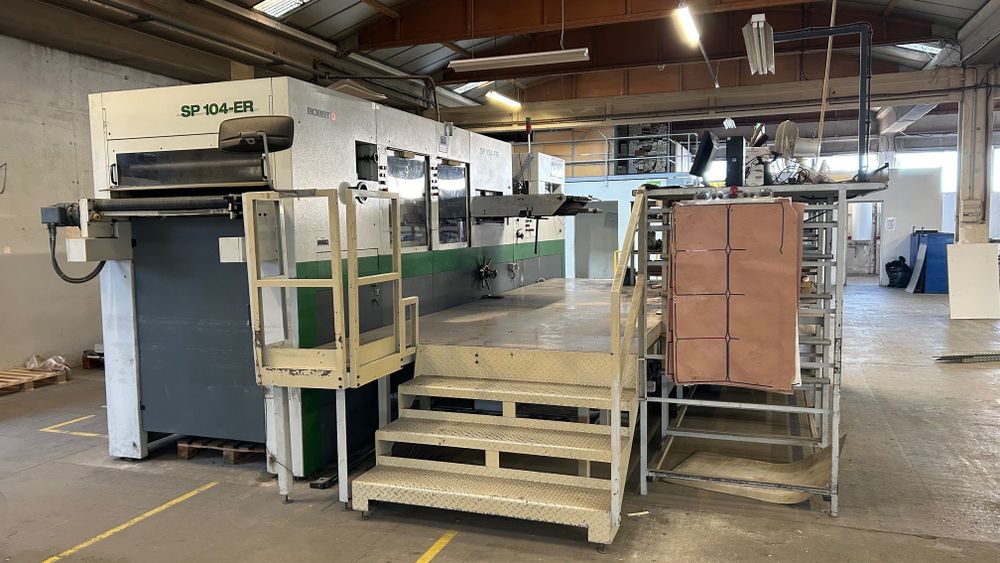

Bobst SP 104 ER

Sheet size max: 1040x740 mm
Sheet size min.: 400x350 mm
Platen pressure max.: 250 tons
Production speed: 8.000 sheets/h.
Paper: 80 - 90 g/m²
Carton Board: 2,000 g/m²
Corrugated board: 4 mm

M3B type feeder with stack movement and handle.
A screw-on bottom forming frame with quick clamping for full format and resin protective plate.
4 mm cutting plate with micrometric system.
Mechanical double sheet
Left margin puller stops.
Optional lowering of the conveyor belt for Cppertinax mounting.
A complete set of upper and lower ejection frames.
An upper frame for conventional delivery outfeed.
A lower delivery frame for conventional delivery outfeed.
A preparation table with bar and needle equipment for traditional ejection.
Chain train in very good condition with clear markings.
Clutch rebuilt. All machine documentation.
