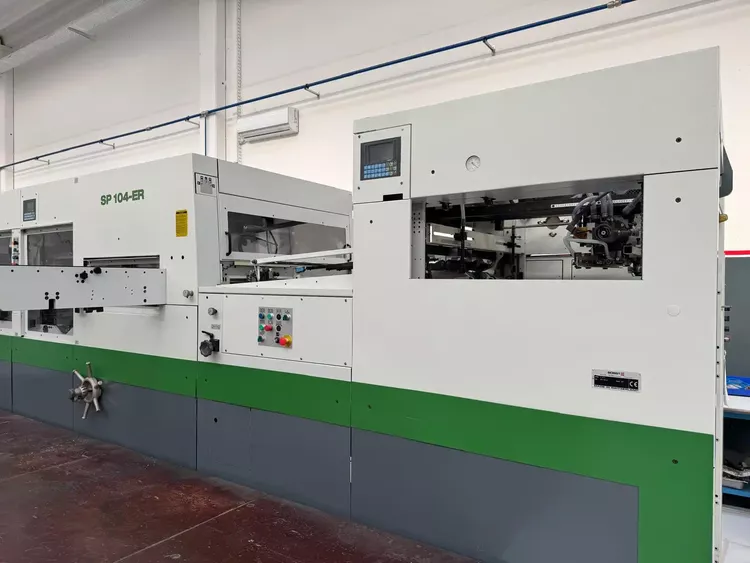

Bobst SP 104 ER

Machine
Platform with safety barrier
Centerline for job quick-change
Electronic double sheet control
Adjustable centering at the stripping and at the delivery
Air conditioning for the electrical cabinet
Gripper bars
Main motor with frequency variator
B-41 ADDITIONAL INTERFACE "CUBE". It includes an additional screen and keyboard located on the feeder, operator side, which facilitate the management of the machine.
B-1 ELEVATED MACHINE Machine elevated 415 mm, included elevation of the steps

Feeder
Pile-tray with handle allowing manual lateral correction of the pile during production
Photocells for automatic cycle on feeder
Pile height control at the front edge thanks to a photoelectric cell
Pile rear guide (OS and OOS sides)
Adjustable lateral blowers with Centerline references
Suction unit with multiple adjusting
Safety system for lowering the pile try
C-4 NON-STOP FEEDER MANUAL DEVICE
C-5 CONTROLLABLE SHEET ARRIVAL FOR PERFECT SYNCHRONIZATION OF SHEET ARRIVAL AND REDUCTION OF MACHINE STOPPAGES
C-8 VERTICAL POSITIONING OF THE SUCTION UNIT. Eliminates manual interventions to compensate for the flatness of the pile shape

Introduction table
Covered with an anti-static stainless steel plate
Synchronization of the sheet adjustable at the stop, allows to adapt the speed of the feeder with which of the platin
Imput on table feeder
4 front lays, adjustable in pairs with front register control
Pull-lay operator side (OS) adjustable according to Centerline, with sheet control
Double sheet detector
Support plates at entry of platen station
Sheet-hold down device (guiding the sheets to front lays)
Upper frame with manual lifting device
Upper sheet transport equipment for paper, cardbord and corrugate cardboard to 4 mm thickness
Transport belt With lateral guidance and automatic tension system
D-73 FEED BELT SLOW-DOWN DEVICE Ensures smooth arrival of sheets against the front registers
D-3 PUSH GUIDE (OOS opposite operator side) WITH ELECTRONIC CONTROL useful for thick carton and corrugate

Platin
Grippers re-opening device
Die-cutting device without band of gripper grip
Equipment centering and locking
Locking of the chase against the upper beam
Measurement of the die-cutting force with strain gauge
Resocell: synthetic material supporting plate. Thickness 22.5 mm
1 Upper chase with quick locking: fixed bottom (E-3) Plate, thickness 2 mm and make-ready protection plate of syntetic material, 1 mm thickness
1 Cutting plate (E-4)
E-5 COMPENSATION PLATE 4 mm thickness. it's useful for thin plate for repetetive work
E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS (MICROMETRIC)

Stripping Station
3 drawer frames system with micrometric adjusting
1 Upper Stripping Frame (F-2)
1 Upper stripping equipment (F-21) required to create a waste stripping tool, including crossbars, clamps, stripper holders and stripping pins of 3, 5 and 10 mm of diameter
1 Fastening equipment for stripping die (F-22)
1 Central drawer frame (F-71)
1 Fastening equipment stripping table (F-75)
1 lower pull-out frame (F-8)
1 Lower stripping equipment (F-81) Equipment for waste stripping including crossbars, pins and supports
F-9 PRE-SETTING TABLE : Adjustable. Allows the preparation of a second job during production, reducing machine makeready time and increasing the time available to run production.
Requires: a series of supplementary stripping tools
F-31 1 UPPER PULL-OUT FRAME QUICK LOCK. It reduces stripping tool assembly times; the quick-closing device allows the tool to be changed in the machine)
B-23 SHEET BRAKING DEVICE USING BERNOULLI SYSTEM AT STRIPPING SECTION. Includes braking tablets that are used with the Bernoulli system.
It allows better maintenance of the back part of the sheets of light material
F-35 1 FASTENING EQUIPMENT FOR UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING (TO FIX STRIPPING TOOL TO THE UPPER PULL-OUT FRAME QUICK LOCK)
F-72 1 CENTRAL PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT
F-76 1 FASTENING EQUIPMENT FOR STRIPPING TABLE ON CENTRAL PULL-OUT FRAME QUICK LOCK It allows to equip a stripping table to install it on central pull-out frame quick-lock

Blanking Station
Drawer sheet device with electronic control of sheet presence
Gripper opening device that allows the sheets to arrive in the pile
Automatic pallet change device (Conveyor) With safety barrier and photoelectric cells (opposite operator side)
Automatic Non-Stop device
Safety of pile ascent
Belt for evacuation of trimmings or residual grid located at the end of the machine. It also allows the removal of a sheet with non-separated poses, for quality control
Residual grid braking brush
Drawer frames system with micrometric adjustment
1 Upper drawer frame (H-21)
1 Universal upper tool (H-25). Equipment necessary for the creation of a pose separation tool
1 Fixing material of a separating tool (H-26). For fixing the upper separation tools of fabricated poses. Recommended for repetitive work.
1 Bottom drawer frame with fastening material (H-5). Allows you to attach a lower separation tool to manufactured poses
1 Adjustable lower tool (H-6). Adjustable tool includes: - universal frame (H-61) - material that allows you to assemble the separation grid

Delivery
B-25 BERNOULLI DEVICE AT THE DELIVERY

Conformity to standards and security
The Autoplaten Presses SP 104-E is in conformity with the European Directives for the Safety and Health requirements related
to its design and construction, sa well American standards UL 508 and NFPA related to industrial equipment
Emergency Stops
Operator safety devices
Gripper Bar Chain Slip Clutch
Gripper bar chain locking device
Handling of the diecutting equipment
