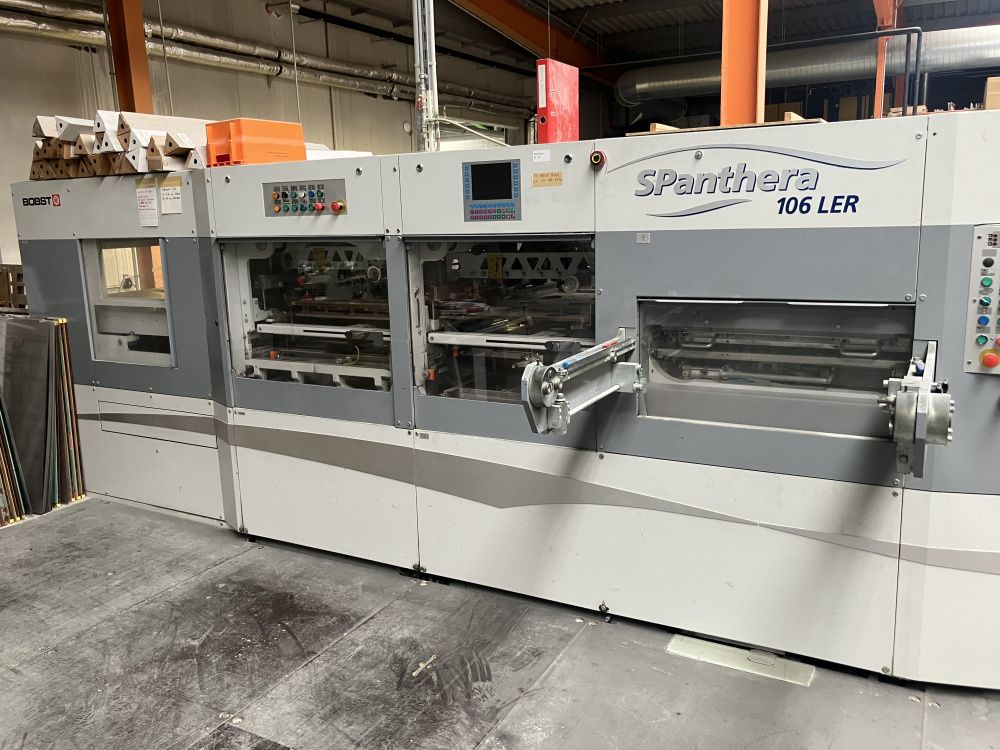

Bobst SPanthera 106 LER

Equipment:
Lower drawer frame
Lower stripping equipment
Mounting material for top tool quick-lock system
Bernoulli braking system – waste stripping section
Bernoulli braking system – delivery section
VIEW Kit
Interface for APT at feeder
Podium extension with walkway
High-speed paper feeding device
Auxiliary blower device for locking section
Automatic non-stop rack with side adjustment for APT
Special APT execution “customer specification”
Motorised vertical adjustment of suction head
Reinforced transport equipment
Double-sheet control with contact
Lower universal blanking tool – Angle Lock system
Universal frame Angle Lock
Device for full-sheet delivery
Warranty extension
Podium for existing Speria 106E No. 0538 006 02
Production & Performance:
Maximum Mechanical Speed: up to 9,000 sheets/hour
Automatic register system: Included
Blanking Capability: Yes (LER = Logistics, Extraction, Removal = full blanking section)
Stripping Section: Full automatic 3-frame stripping
Non-Stop Functionality:
Non-stop feeder (continuous pile logistics)
Non-stop delivery (automatic pile change)
Format & Substrate Capabilities:
Max. Sheet Size: 760 × 1,060 mm
Min. Sheet Size: approx. 350 × 400 mm
Max. Cutting Size: 745 × 1,055 mm
Gripper Margin: approx. 8–10 mm
Paperboard Thickness: 0.1 – 2,000 g/m² (paper to heavy board)
Corrugated Board: up to N-flute / F-flute (depending on tooling)
Max. Cutting Pressure: up to 260 t (BOBST Autoplatine standard)

Included Standard Options:
Upper quick-lock frame
Compensation plate
