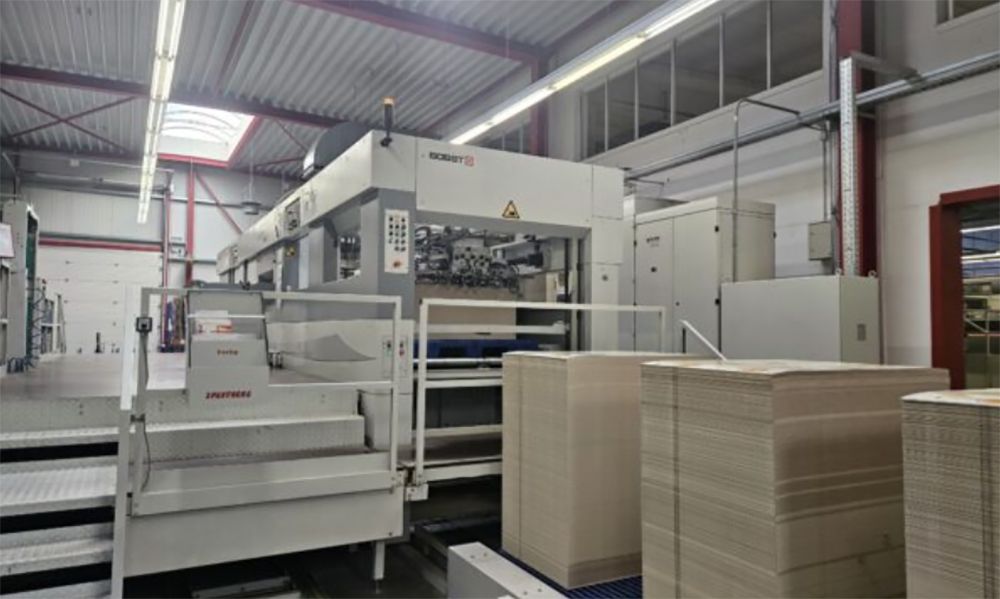

Bobst SPanthera 145 PER

Additionally equipped with:
Machine
B-23 Sheet braking device using the Bernoulli system at stripping station
B-25 Sheet braking device using the Bernoulli system at the delivery station
B-41 Additional ‘CUBE’ control panel
B-75 Cabinet for pumps

Feeder
C-18 Identification of the first and last sheets in the pile
C-23 APT Feeder version ‘U’ (special pallets needed)
C-31 Automatic non-stop rack with lateral adjustment for APT (special pallets needed)
C-81 Lengthwise motorized movement of the section unit
C-82 Additions for the suction unit

Platen
E-3 2x Upper chase with quick locking: fixed bottom plate
E-11 Oil conditioning unit

Stripping station
F-2 2x Upper pull-out frame
F-8 2x Lower pull-out frame
F-60 Gripper bar locking at stripping station
F-69 Sheet travelling control photocells with external manual adjustment

Separation station
H-7 Special non-stop rack
H-21 2x Upper pull-out frame
H-30 positioning tool for non-stop bars at delivery
H-5 2x Lower pull-out frame
H-6 Universal lower tool
H-61 additional Universal tool frame
H-75 Control system of blanking
H-78 Full sheet delivery system
M-5 Chase changer

SPECIFICATIONS :
Max. sheet size : 145 x 105 cm
Min. sheet size : 58 x 45 cm
Paper : 80 g/m2
Solid board : up to 2000 g/ m2
Corrugated board : up to 5 mm
Speed : 7500 sheets/hour
Cutting force : Max. 600 T
Approx. total weight : 52 T
