Boehringer PHILLIPS GRUNDIG 3000 rpm VDF 250 C 2 Axis

Ref : 2728145-3-GO

Condition : Used

Manufacturer : Boehringer

Controller : PHILLIPS GRUNDIG

Spindle Speed : 3000 rpm

Model : VDF 250 C

Nb Of Axis : 2 Axis

Year(s) : 1990

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

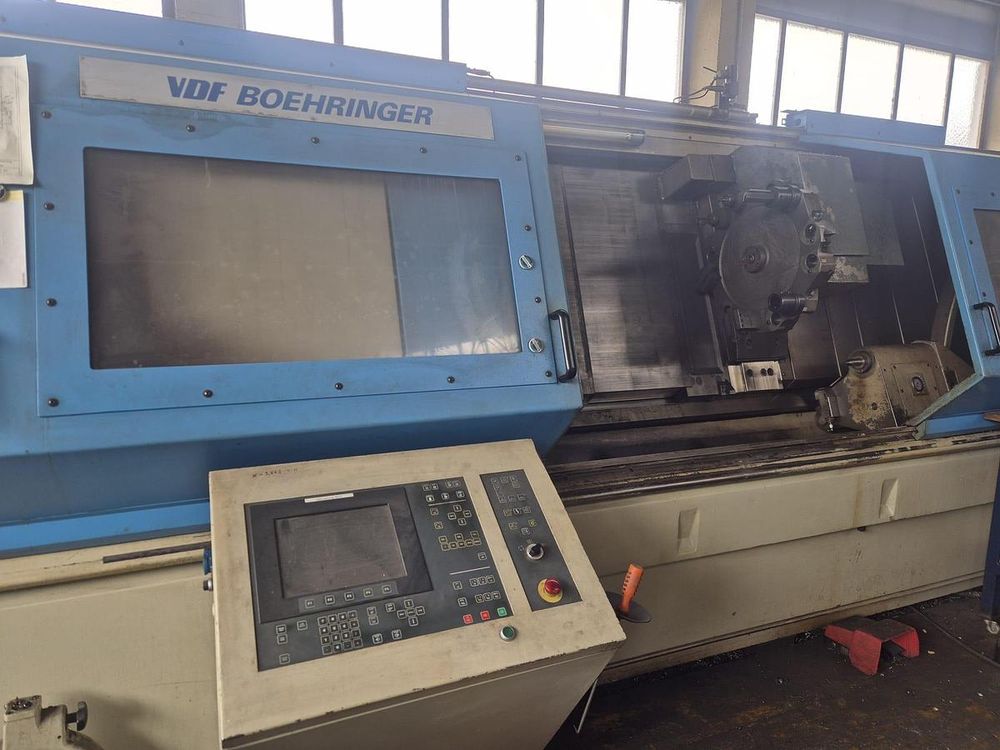

BOEHRINGER VDF 250 C
1990

CNC control PHILLIPS GRUNDIG
Swing diameter over bed 550 mm
Swing diameter over bed slide 480 mm
Cross travel (X-axis) 405 mm
Longitudinal travel (Z-axis) 1099 mm
Maximum turning length 2000 mm
Tool turret positions 12
Tool adapter VDI 50 DIN 69880
Live tools not available
Spindle head size 8 DIN 55026
Front bearing diameter 150 mm
Spindle bore 103 mm
Maximum chuck diameter 315 mm
Drive power at 50% duty cycle 53 kW
Maximum torque 780 Nm
Spindle speed range 30 to 3000 rpm
Feed rate X-axis 10000 mm/min
Feed rate Z-axis 10000 mm/min
Rapid traverse X-axis 10 m/min
Rapid traverse Z-axis 10 m/min
Maximum feed force 15 kN
Machine dimensions (L x W x H) approx. 6400 x 3200 x 2400 mm
Machine weight approx. 13500 kg
