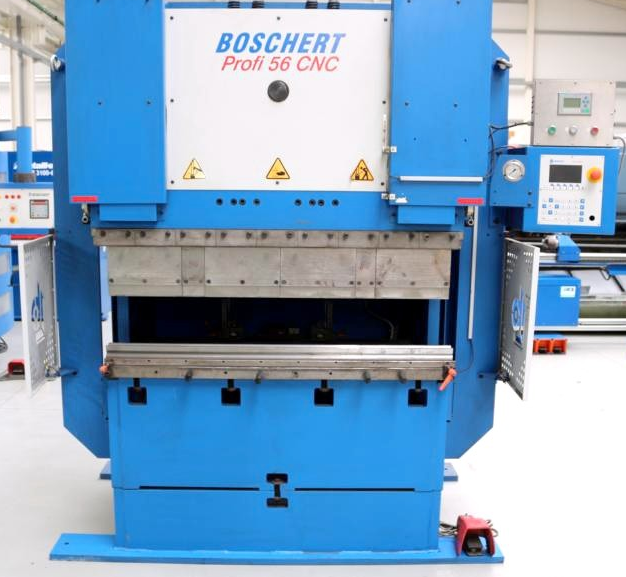

Boschert PROFI 56 - 1400 CNC 56.0 T

BOSCHERT PROFI 56 - 1400 CNC
Year of manufacture 2008

Equipment:
- NC electro-hydraulic press brake
- BOSCHERT NC control unit, front
- NC electro-motorized back stop (X axis)
* with 2x manually adjustable stop fingers (R+Z axis)
- AMADA PROMECAM (SYSTEM A) upper tool holder
- AMADA PROMECAM (SYSTEM A) lower tool holder
- Handwheel with analog display for adjusting the bending angle
- lots of insert tools, including tool cabinet
- 1x working cylinder = double-acting cylinder
- upper beam made from a solid steel plate
- pressure gauge for pressing pressure (infinitely adjustable)
- 2x front support tables
- 1x freely movable foot switch
- robust machine base
- rear protective device (cover + circuit breaker)
- original operating instructions (machine + control)


pressure: 56.0 t
chamfer lenght: 1400 mm
distance between columns: 1300 mm
throat: 220 mm
stroke: 200 mm
dayligth: 485 mm
work speed: 8.0 - 10.0 m/min
return speed: 35.0 mm/sec
Control: CNC Boschert
back stop - adjustable: 0 - 370 mm
work height max.: 915 mm
Cylinders :: 2 Stück
voltage: 3x 400 V
connected load: 8.0 kVA
weight: 3700 kg
range L-W-H: 2320 x 1280 x 2030 mm
