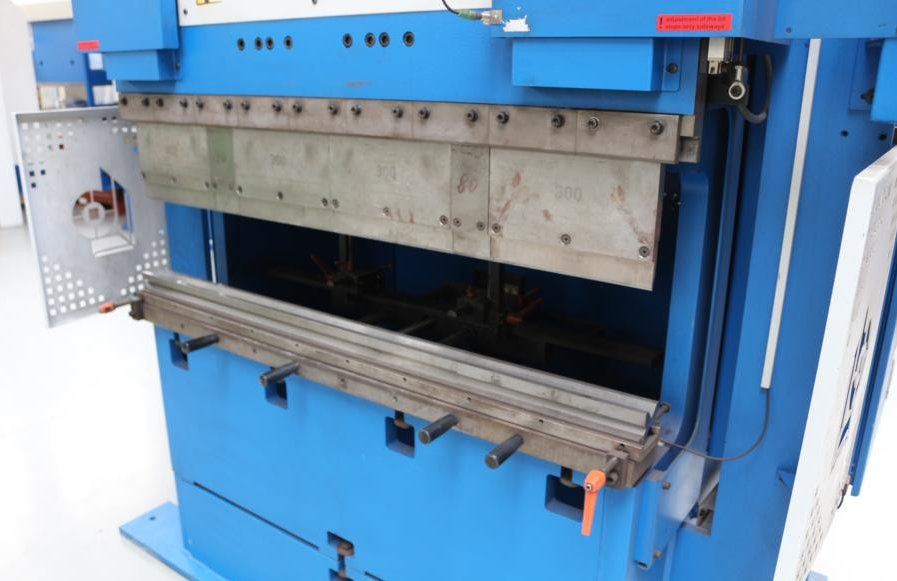

Boschert PROFI 56 - 1400 CNC 56 t

Press Force 56 t
Chamfer Length 1,400 mm
Distance Between Columns 1,300 mm
Throat 220 mm
Stroke 200 mm
Daylight 485 mm
Work Speed 8.0 - 10.0 m/min
Return Speed 35 mm/sec
Control CNC Boschert
Back Stop Adjustable 0 - 370 mm
Maximum Work Height 915 mm
Cylinders 2
Voltage 3x 400 V
Connected Load 8.0 kVA
Weight 3,700 kg
Machine Footprint 2,320 x 1,280 x 2,030 mm
NC Electro-Hydraulic Press Brake
NC Electro-Motorized Back Stop (X Axis)
2x Manually Adjustable Stop Fingers (R+Z Axis)
AMADA PROMECAM Upper Tool Holder
AMADA PROMECAM Lower Tool Holder
Handwheel with Analog Display for Bending Angle
Lots of Insert Tools, Including Tool Cabinet
Double-Acting Working Cylinder
Upper Beam Made from Solid Steel Plate
Infinitely Adjustable Pressure Gauge
2x Front Support Tables
Freely Movable Foot Switch
Robust Machine Base
Rear Protective Device (Cover + Circuit Breaker)
Original Operating Instructions (Machine + Control)
