Bottene COMPACT BASIC/P

Vertical Milling Jointing Line
Minimum cross-section dimensions: 70 × 20 mm
Maximum cross-section dimensions: 280 × 110 mm
Minimum joint length: 700 mm
Length of jointed boards: unlimited

The line consists of:
Motorized roller conveyor
1 x 0.75 kW motor, Speed: 15/90 m/min
Dimensions: 6,000 x 300 mm

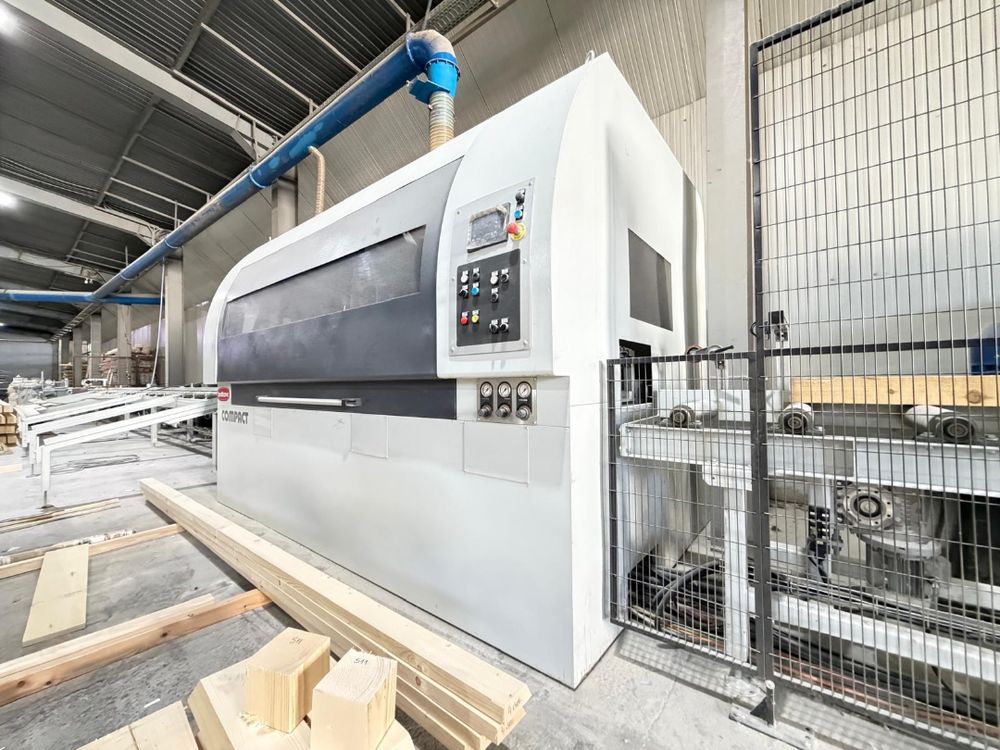

Compact Automatic Vertical Finger Joint
1 board feeding unit with 2 chrome-plated rollers, Ø 250 mm
1 horizontal moving station for joint closing
1 clamping unit on the horizontal moving station for the incoming board
1 anti-chipping device on the horizontal moving station
4 adjustable lateral pushers for positioning the boards against the main reference
1 double-spindle shaping unit
1 extraction hood Chips for Ø 200 mm cutting heads
1 gluing unit for polyurethane glue, complete with:
2 stainless steel valves
2 profiled combs
1 fixed clamping unit on the main structure
1 jointed table feed unit with 2 Ø 250 mm rollers (Teflon-coated)
1 cross-cut measuring unit with encoder
1 safety enclosure
1 hydraulic power unit
1 control panel

Automatic unloader
Dimensions: 14,000 x 1,000 mm
1 roller conveyor for sliding the jointed slats
Inclined steel lateral structure for depositing the jointed slats
1 pneumatic lateral pusher

Complete line with:
SPAPUR 300 spray gluing unit, designed for polyurethane (PU) glue
Shear and flexural strength testing machine (KN) 50
