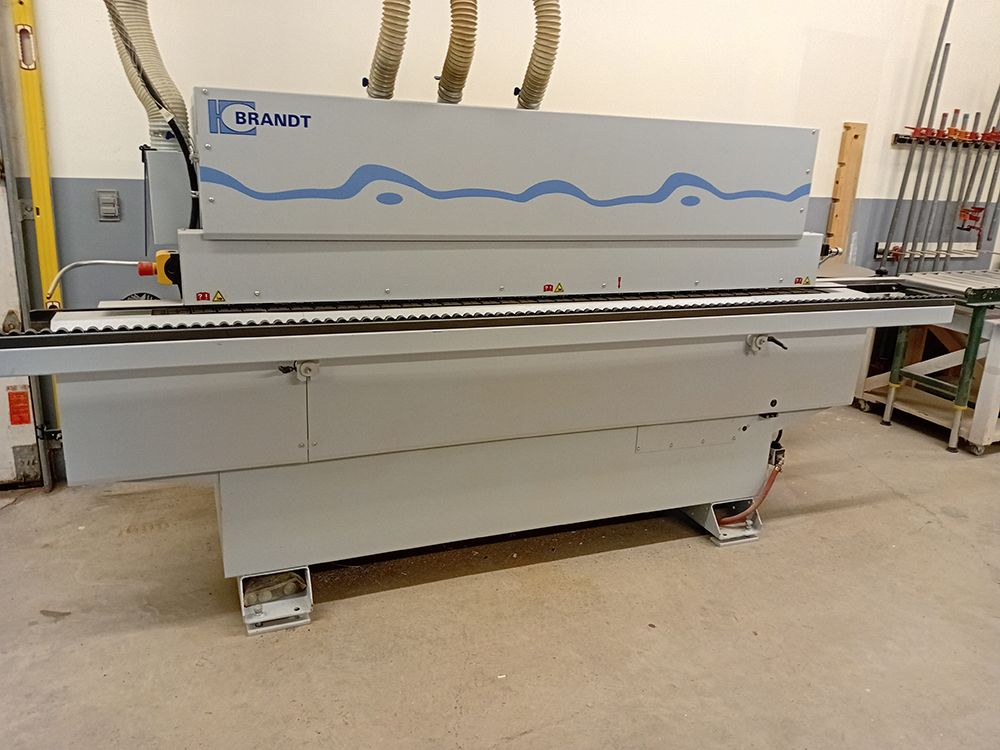

Brandt Ambition 1200 KDN 200

Edgebander
Verified Specifications :
Electrical Supply :
Voltage: 400 / 230 V
Phase: 3‑Phase
Frequency: 60 Hz
Maximum full‑load current: 28 A
Short‑circuit current rating: 5 kA RMS symmetrical

Power & Control:
Largest motor rating: 1.9 A
Largest heater: 2.4 A

Technical Specifications & Capabilities :
Panel thickness range: 10 mm (⅜") to 50–55 mm (2"–2¼")
Minimum panel length: 200–250 mm (8"–10")
Minimum panel width: 70 mm (2¾")
Edgeband thickness capacity: 0.4 mm to 3.0 mm
Solid wood edging:
Capable of processing solid wood edge strips up to ~3 mm
Best suited for straight or lightly profiled solid wood applications
Pre‑milling is not present, so panels should have clean, square edges when running solid wood
Feed speed: Variable, approx. 8–10 m/min
Designed for consistent, controlled production, not high‑speed power‑line operation
