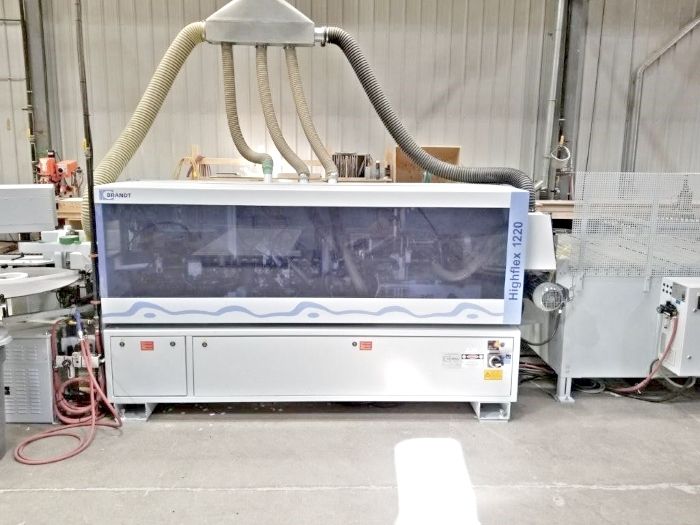

Brandt Highflex 1220 KDF 220

Edge Bander / Panels Return System
"This machine is in good working condition."

ELECTRICAL REQUIREMENTS:
Voltage: 400/230 volts
Phase: 3

OTHER SPECIFICATIONS:
Brandt Highflex 1220 KDF 220 Edge Bander:
Max edges material thickness: 0.118" from coil, 0.236" strips
Min workpiece width:
2.75" @ 0.47 - 0.87" thick
4.7" @ 0.91 - 1.6" thick
5.9" @ 1.6 - 2.4" thick
Equipment:
Pre-Milling 2 x 2.2 kW
Pre-heating of panel edge
Glue aggregate A6
Coil edge magazine
Pressure zone, central positioning
End trims, chamfer 15°/straight, 2 x 0.18 kW, 12,000 rpm, electro-pneumatic setting central control
Top & Bottom trimming, 2 x 0.27 kW, automatic adjustment when switching from straight to angle
Corner rounding unit 1 x 0.35 kW, 12,000 rpm, max. 0.118" edge thickness, workpiece thickness: max. 1.57", feedspeed 36 ft/min., min workpiece length: 9.84".
Profile scraping unit, quick toolchange, edge thickness: max. 0.118", electro-pneumatic setting by central control
Glue scraping unit
Automated Panel Return System Ligmatech (Homag Group) ZHR 01 / R / 065:
Model: ZHR 01 / R / 065 Optimat Boomerang

PANELS RETURN SYSTEM for EDGE BANDER:
It works together with a single-side Edge Bander allowing the operator (worker) to always stay at the in-feed side
of the machine (the processed workpiece will automatically return-back to the operator).
Roller translator table with belts, 180° - 83.86" x 87.01"
Conveyor (motorized carpet) 177.17" x 35.43"
(End) Rollers Table 79.92" x 35.43"
Min/Max panel thickness: 0.31" / 2.36"
Min dimensions of the panels: 11.81" x 1.97"
Max dimensions of the panels: 98.43" x 57.09"UE-100120C - 18331
