Brandt Optimat KC 78-2C
AMERICA North (USA-Canada-Mexico)

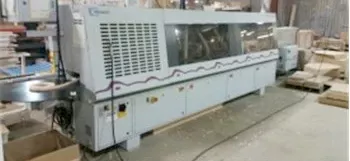

Used Automatic Edge Bander with used Ligmatech ZHR 01/R/045 Return Conveyor - Can be seen in operation.
Equipped with a...
PC-16 Program Control with a 7.4" color LCD screen
8 MB IDE Flash Disc 100 MHZ 486 DX4 Hard Drive
8 MB RAM and internal modem for remote diagnostic link
automatic height adjustment for top pressure beam with all work stations
digital height indicator
signal light at infeed for panel spacing
automatic magazine for strip and coil feeding with a large coil table (800mm diameter) for up to 3mm PVC
Quickmelt granulate glue application system
quick-change glue tank; reversible rotation of glue application roller
infrared radiant quartz heating unit between glue roller and pressure zone for optimum gluing strength
first pressure roller driven and three idle pressure rollers
two motor end trimming unit for straight and up to 15 degrees chamfer with pneumatic indexing via program control
top and bottom fine trimming station with digital "Quickset" system with tilt from 0 to 25 degrees
pneumatic indexing via program control
second top and bottom fine trimming station with digital "Quickset" system
tilt from 0 to 25 degrees with indexing via program control
two motor contour trimming station for corner rounding/trimming
sound and safety enclosure with centralized dust extraction outlet
top and bottom scraping station with pneumatic indexing via program control
electronic frequency changer for all trimming motors with electronic brakes
electrical controls wired for AC 3/60/230 volt operation
edgeband thickness capacity of 0.016-1/2"
edge band height capacity of 1/2" to 2-3/8"
minimum panel length of 6-3/8"
minimum width capacity of 2-3/8"
panel thickness capacities of 5/16" min. and 2-3/16" max
feed motor delivering a feed rate of 46 F.P.M.
