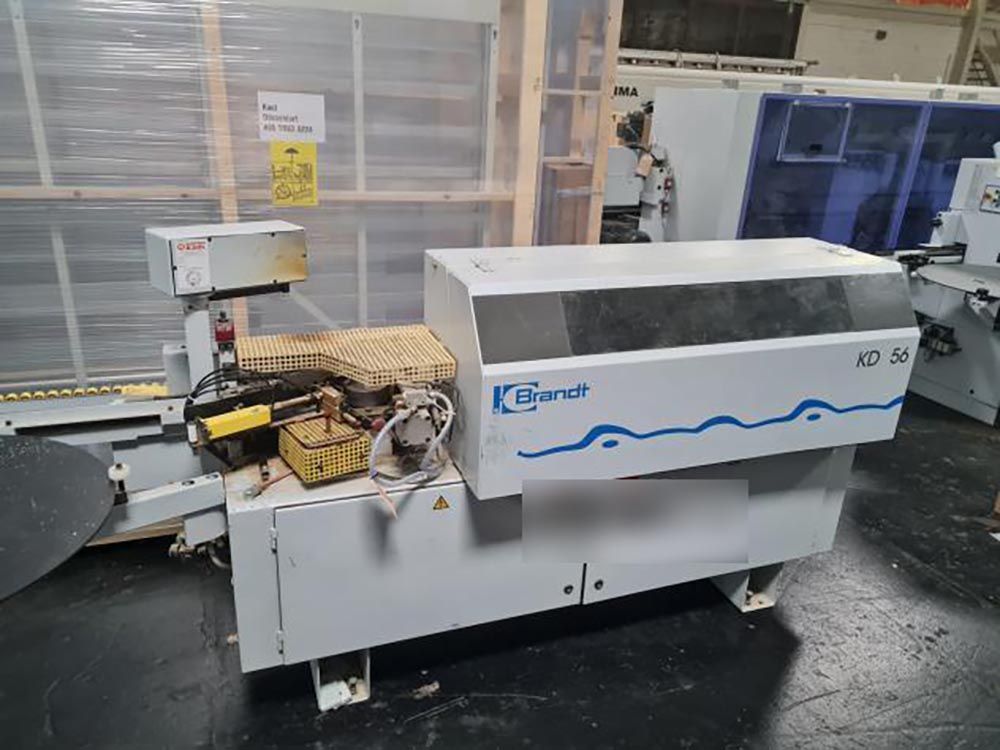

Brandt OPTIMAT KD56

Edge Banding Machines
Equipment:
- Gluing unit for hot melt adhesive granules
- Cross-cut saw unit
- Flush trimming unit, top and bottom
- Scraper unit for PVC edges
- Buffing unit with 2 motors
- Control panel at the machine inlet

Technical Specifications:
Workpiece thickness 8 - 40 mm
Workpiece width min. 60 mm
Workpiece length min. 140 mm
Edge thickness:
Fixed lengths 0.4 - 3.0 mm max. (3 x 45 mm)
Roll cutting 0.4 - 3.0 mm
(max. 3 x 30 mm / 0.8 x 45 mm)
Feed rate approx. 9 m/min.
Electrical system: 400 V - 3 Ph. - 50 Hz
Power rating: 3.8 kW
Compressed air connection: 6 bar
Weight: approx. 860 kg
Machine length: approx. 3075 mm
