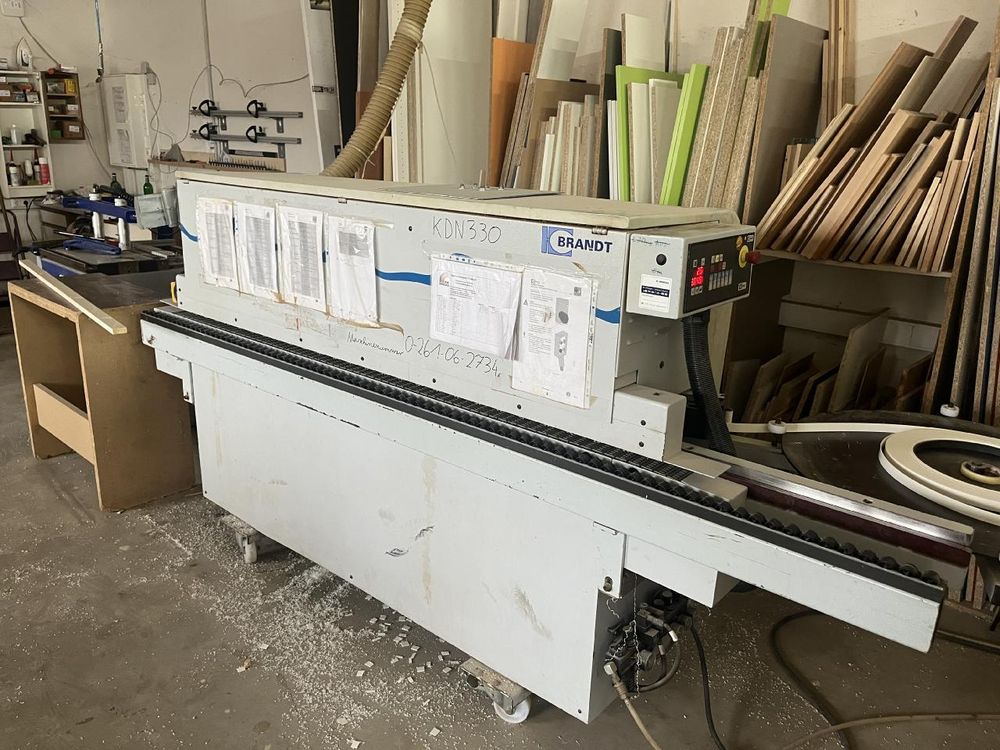

Brandt Optimat KDN 330

Used machine
With gluing unit for hot melt adhesive granules
Glue reservoir below the glue roller
Glue application to the workpiece via glue roller in both co-rotation and counter-rotation modes
Automatic edge magazine for roll material and fixed lengths
Pressure zone with pneumatically driven main pressure roller and special secondary pressure rollers for compacting the top and bottom glue joint
Centrally adjustable top pressure
Central manual chain conveyor lubrication
Control panel at the machine infeed
Crosscut saw blade for front and rear edge overhang; High-precision linear guide
Two 0.18 kW motors
Swivel range for straight and chamfered end mills: 0-15 degrees

Flush milling unit (top and bottom) with vertical and horizontal probing
Swivel range: 0-15 degrees with two milling motors and indexable insert combination (straight/radius)
Digital counters enable fast and defined, i.e., repeatable, settings
Two-point pneumatic adjustment of upper and lower milling motors

Drafting unit for finishing with horizontal/vertical probing
Workpiece support extendable to 350 mm
Integrated path control for contactless control of machining functions.
Adjustable via keypad and LED display
Workpiece thickness: 8-50 mm
Edge thickness: 0.4-3 mm
Feed rate: approx. 9 m/min

Power rating: 4.1 kW
Compressed air connection: 6 bar
Weight: approx. 750 kg
Machine length: 3150 mm
