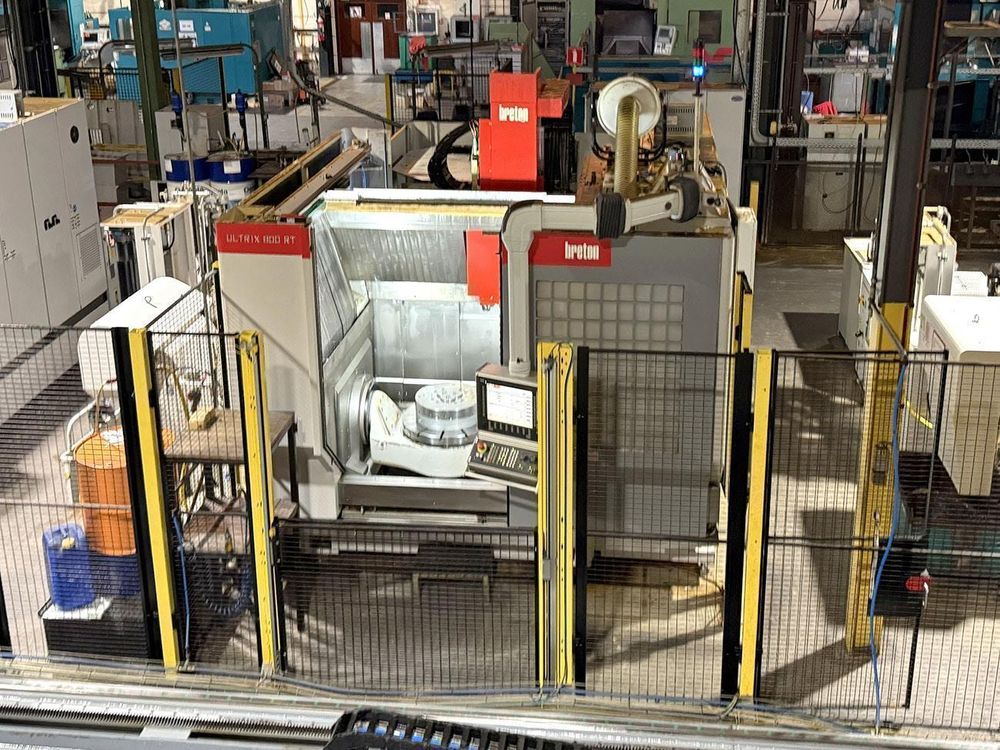

Breton Ultrix 800 5 Axis

X-axis 800 mm
Y-axis 900 mm
Z-axis 600 mm
A-axis -30° / 110°
C-axis continuous

Table diameter 700 mm
Maximum workpiece weight 700 kg
Table torque 1500 Nm
Table speed 1000 rpm
Hydraulic clamping on table
Tool taper milling HSK-E40
Tool taper turning KM63
Spindle taper HSK-A63
Spindle power 55/40 kW
Spindle torque 22 Nm
Spindle speed 40,000 rpm
Table power 40/30 kW
Control Siemens 840D Solution Line
Number of axes 5
Tool changer 150 positions
Tool changer for milling 126 positions
Tool changer for turning 24 positions
Drilling capacity yes
Tapping capacity yes
Cooling system yes
Coolant temperature control yes
High-pressure cooling 40–70 bar through spindle
Chip conveyor belt
Chip collection box
Smoke extraction system
Laser and mechanical tool measuring system
Renishaw probe
Machine length 4655 mm
Machine depth 5890 mm
Machine height 3415 mm
Machine weight 17 tons
