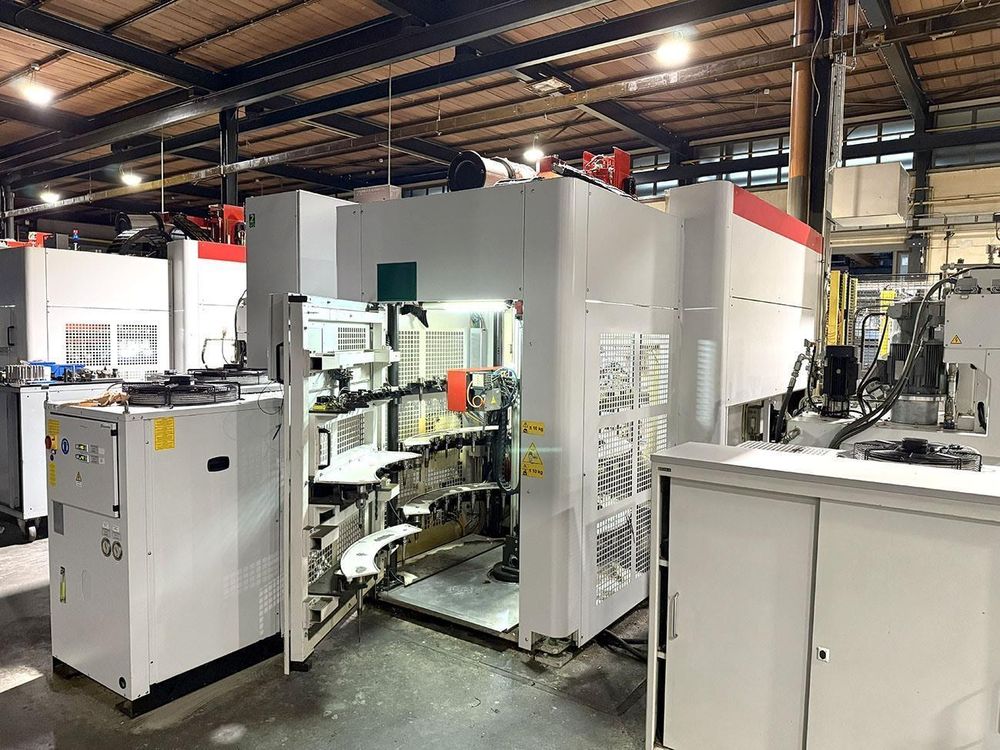

Breton ULTRIX 800 RT 5 Axis

X axis travel 800 mm
Y axis travel 900 mm
Z axis travel 600 mm
A axis -30° / 110°
C axis continuous
5-axis machining
Control Siemens 840D Solution Line
Chip conveyor
Coolant system with recovery
Coolant temperature control
High pressure through spindle coolant 40 – 70 bar
Smoke extraction system
Chip collection box
Laser tool presetting system
Mechanical tool probe
Renishaw measuring probe
Spindle power 40 kW
Spindle speed 18000 rpm
Spindle torque 137 Nm
Tool taper HSK-63
Turning tool taper KM63
Tool magazine 150 positions
24 turning tool positions
126 milling tool positions
Table diameter 700 mm
Hydraulic table clamping
Maximum workpiece weight 700 kg
Turntable torque 1500 Nm
Turntable speed 1000 rpm
Machine length 4655 mm
Machine width 5890 mm
Machine height 3415 mm
Machine weight 17000 kg
