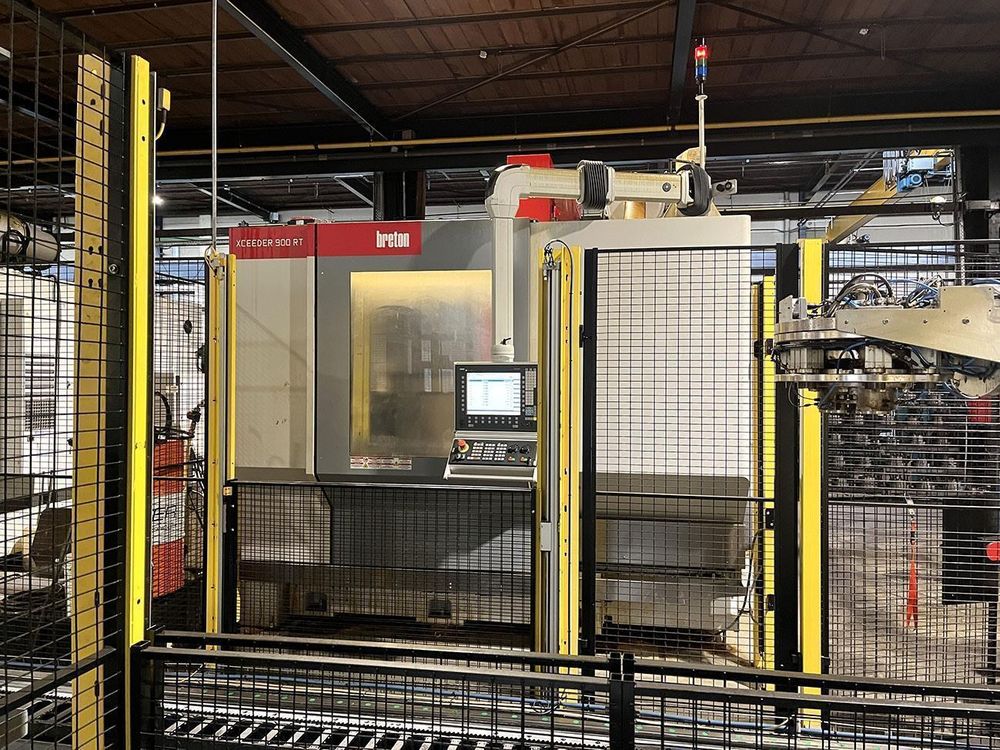

Breton Xceeder 900 CNC 3 Axis

X Travel 900 mm
Y Travel 900 mm
Z Travel 600 mm
A-Axis -30° / 110°
C-Axis Continuous
Control Siemens Sinumerik 840D SL
Number of Axes 5 Simultaneous
Spindle Power 40 kW
Spindle Speed 40,000 RPM
Spindle Admission HSK-A63
Table Diameter 700 mm
Max Workpiece Diameter 900 mm
Max Distance Spindle-Table 700 mm
Max Workpiece Weight 1000 kg
Toolchanger 150 Positions
Hydraulic Clamping on Table
Chip Conveyor Belt
Cooling System with Recovery
Coolant Temperature Control
High Pressure Cooling 40–70 bar by Spindle
Smoke Extraction System
Chip Collection Box
Presetting System and Tool Integrity: Laser and Mechanical Probe
Renishaw Probe
Length 4655 mm
Depth 5890 mm
Height 3415 mm
Weight 16,500 kg
