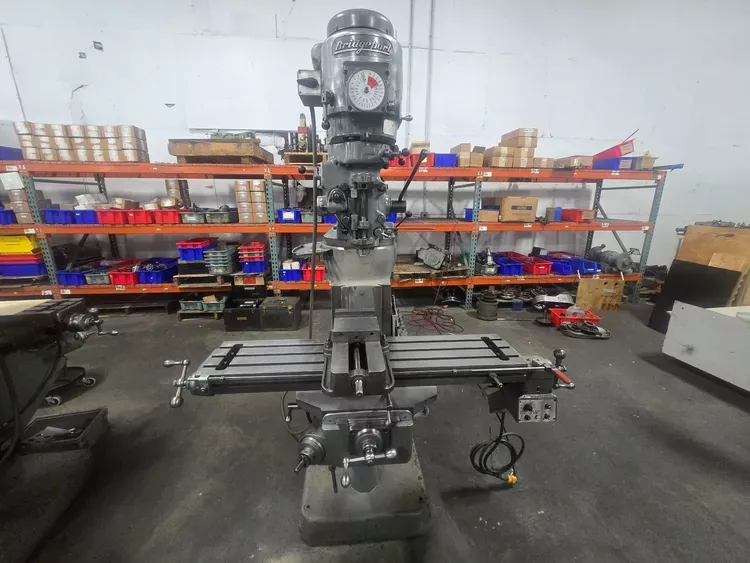

Bridgeport Series 1 2 HP Vertical 4,200 RPM

X-Axis Travel: 31"
Y-Axis Travel: 12"
Z-Axis/Knee Travel: 16"
Quill Travel: 5"
Ram Travel: 12"
Spindle Taper: R-8
Spindle Power: 2 HP (continuous), 3 HP (30 min duty)
Spindle Speed: 60 – 4,200 RPM
Tooling: R-8 Collets
Power Quill Feed: 0.0015 in./rev, 0.003 in./rev, 0.006 in./rev
Drilling Capacity: 3/8 in.
Milling Capacity (mild steel): 2 CI/min
Boring Range (mild steel): 6" dia.
Spindle Diameter: 1.875"
Quill Diameter: 3.375"
Feedrate Range (X, Y): 0.50 – 35 ipm
Minimum Increment: 0.0001 in.
Table Size: 9" × 42"
T-Slots: 3 @ 2.5" centers
T-Slot Size: 0.625"
Max Workpiece Weight: 750 lbs
Floor Area: 8.3' × 7.8'
Machine Height: 87"
Machine Weight: 1,930 lbs
Shipping Weight: 2,075 lbs
Input Power: 208/230/460 V, 3 phase, 50/60 Hz, 4 kVA
Bridgeport Power Feed
Chrome Ways
Bijur One Shot Lube
