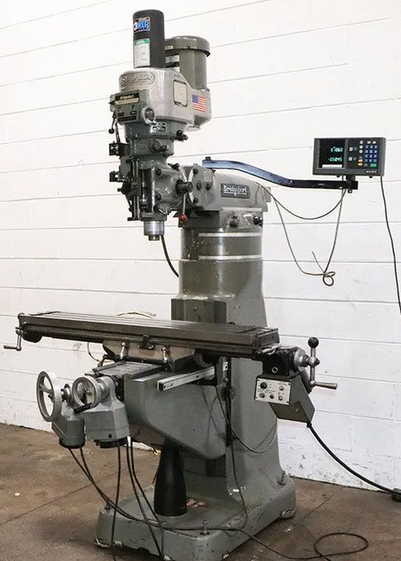

Bridgeport SERIES 1 Vertical 4,200 RPM

Table Size: 9" × 48"
Number of T-Slots: 3
Longitudinal Table Travel: 36"
Cross Travel: 12"
Quill Travel: 5"
Knee Travel: 16"
Ram Travel: 12"
Max/Min Distance, Spindle Nose to Table: 18-1/2" / 2-1/2"
Max/Min Distance, Centerline of Spindle to Face of Column: 18-3/4" / 6-3/4"
Head Tilt Left & Right: 90°
Head Tilt Front & Rear: 45°
Infinitely Variable Speed Range: 60–4,200 RPM
Spindle Taper: R-8
Max Collet Capacity: 3/4"
Quill Feeds: 0.0015", 0.003", 0.006"
Approximate Weight: 2,000 lbs
Control: ACU-RITE Two-Axis Digital Readout
Mitutoyo Digital Readout for Quill Travel
Bridgeport Power Feed, Longitudinal Travel
Servo Power Feed, Cross Travel
Servo Power Feed, Vertical Knee Travel
Chrome Ways
Kurt Air Actuated Power Draw Bar
4" Riser Block
Bijur Spray Mist Coolant System
Bijur One-Shot Lubrication System
Bridgeport Series I Milling Head
Spindle Motor: 2 HP
