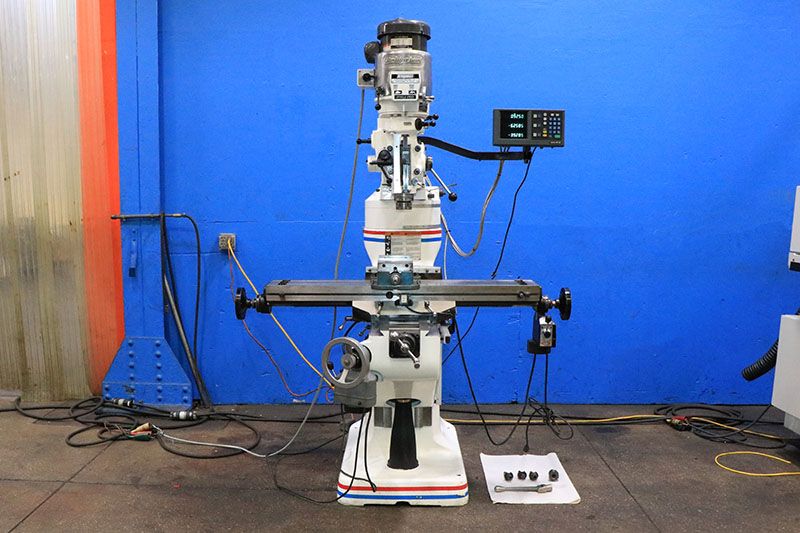

Bridgeport SERIES I Vertical 4200 rpm

Table size 9" x 48"
Number of T-slots 3
Longitudinal table travel 36"
Cross travel 12"
Quill travel 5"
Knee travel 16"
Ram travel 12"
Max distance spindle nose to table 18.5"
Min distance spindle nose to table 2.5"
Max distance spindle centerline to column 18.75"
Min distance spindle centerline to column 6.75"
Head tilt left and right 90°
Head tilt front and rear 45°
Variable speed range 60–4200 rpm
Spindle taper #30 quick change
Max collet capacity 3/4"
Quill feeds 0.0015", 0.003", 0.006"
Approximate weight 2000 lbs
Spindle motor 2 HP

Acurite three-axis digital readout
Mitutoyo digital readout for quill travel
Servo power feed for longitudinal travel
Servo power feed for vertical knee travel
Chrome ways
4" riser block
6" Kurt D60 AngLock vise
Bijur automatic lubrication system
Bridgeport Series I milling head
