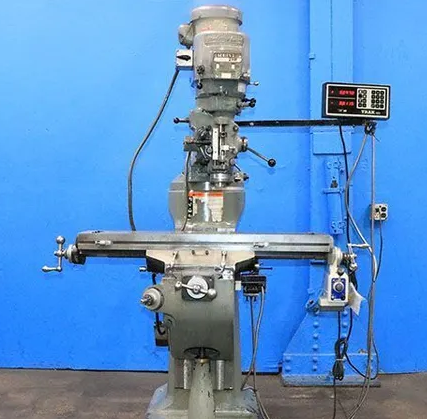

Bridgeport SERIES I Vertical 4200 RPM

Table size 9" x 42"
Number of T-slots 3
Longitudinal table travel 30"
Cross travel 12"
Quill travel 5"
Knee travel 16"
Ram travel 12"
Max/min distance spindle nose to table 18-1/2" / 2-1/2"
Max/min distance centerline of spindle to face of column 18-3/4" / 6-3/4"
Head tilt left & right 90°
Head tilt front & rear 45°
Infinitely variable spindle speed 60–4,200 RPM
Spindle taper R8
Max collet capacity 3/4"
Quill feeds 0.0015", 0.003", 0.006"
Spindle motor 2 HP
Control 2-axis TRAK digital readout
Power feed for longitudinal travel
Chrome ways
Bijur automatic lubrication system
Bridgeport Series I milling head
Approximate weight 2,000 lbs
