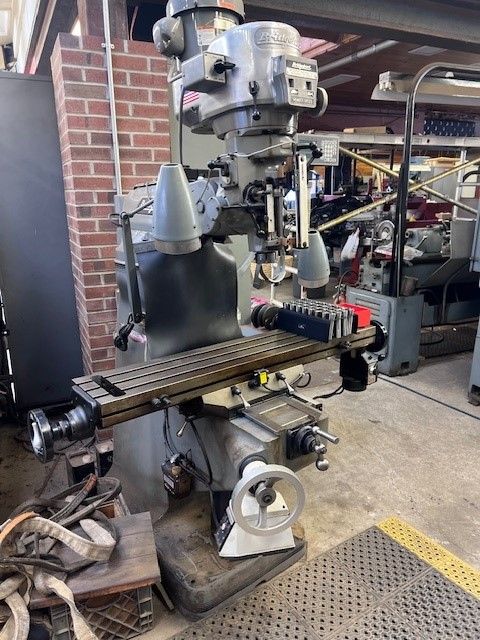

Bridgeport SERIES I Vertical 4200 rpm

Table size: 9" × 48"
Number of T-slots: 3
Longitudinal table travel: 36"
Cross travel: 12"
Knee travel: 16"
Ram travel: 12"
Distance spindle nose to table: 2.5" – 18.5"
Distance spindle centerline to column face: 6.75" – 18.75"
Head tilt left/right: 90 degrees
Head tilt front/rear: 45 degrees
Variable spindle speed range: 60 – 4200 rpm
Spindle taper: R8
Maximum collet capacity: 3/4"
Quill travel: 5"
Quill feeds: 0.0015, 0.003, 0.006
Spindle motor power: 2 HP
Three-axis digital readout system (quill, longitudinal, cross travel)
Servo power feed longitudinal travel
Servo power feed vertical knee travel
Chrome ways
One-shot lubrication system
Approximate weight: 2000 lbs
