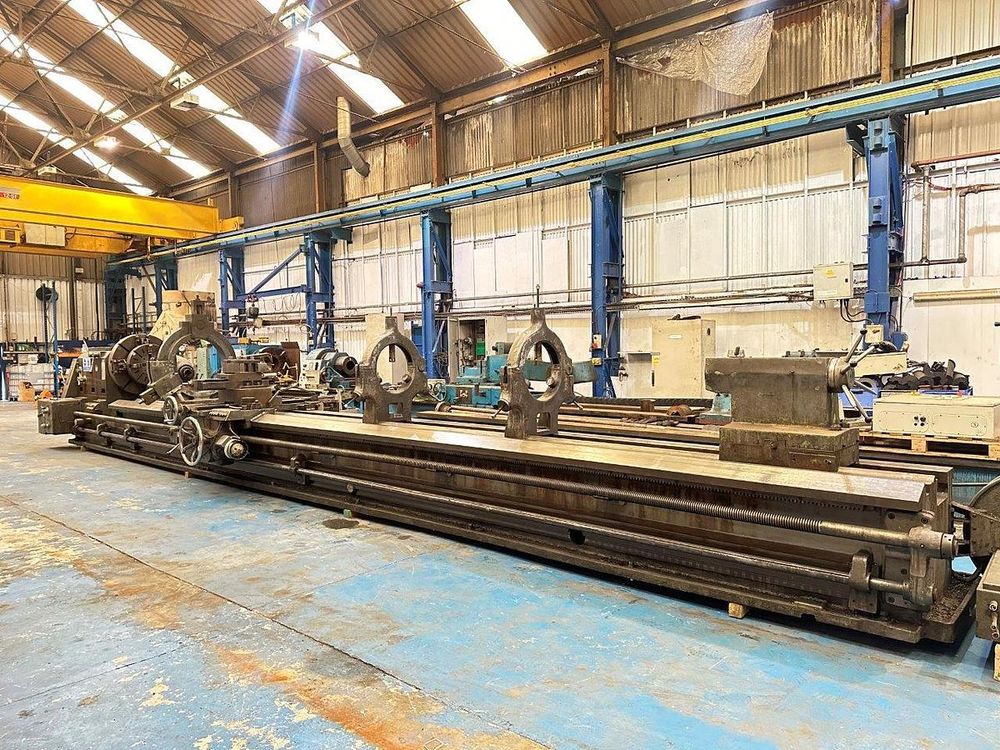

Broadbent Engine Lathe 360 RPM (18 speeds) 1041MM X 9300MM LATHE

Ref : 2770501-3-GO

Condition : Used

Manufacturer : Broadbent

Type : Engine Lathe

Spindle Speed : 360 RPM (18 speeds)

Model : 1041MM X 9300MM LATHE

Year(s) : 1973

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing Over Bed: 1041mm (41”)
Swing in Gap: 1575mm (62”)
Distance Between Centres: 9300mm (30’ 6”)
Spindle Bore: 115mm (4 ½”)
Spindle Speeds: 3.3 – 360 RPM (18 speeds)
Spindle Motor: 30 HP or 40 HP
Tailstock: 6 MT
Threading: Imperial & Metric with change gears
Faceplate: 36” with 4 adjustable jaws
Faceplate: 54”
Taper Turning Attachment
Power Feed to Top Slide
Steadies: 2 x 18” 3-point
Steady: 24”/28”
