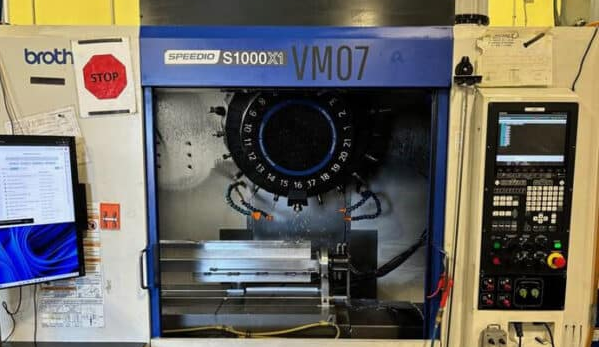

Brother SPEEDIO S1000X1 3 Axis

Axis travel (X/Y/Z): 39.4" x 19.7" x 11.8"
Control: Brother CNC-C00
Distance between table top and spindle nose end: 7.1"–18.9"
Work area size: 43.3" x 19.7"
Max loading capacity (uniform load): 661 lbs
Spindle speed (optional): 16–16,000 RPM
Spindle taper: 7/24 taper No.30
Rapid traverse rate (X/Y/Z): 1,969 x 1,969 x 2,205 IPM
Cutting feed rate (X/Y/Z): 0.04–1,181 IPM
Tool shank type: MAS-BT30
Tool storage capacity: 21
Max tool length: 9.8"
Max tool diameter: 4.3"
Max tool weight: 6.6 lbs
Tool change time (tool-to-tool): 0.8 sec
Tool change time (chip-to-chip): 1.4 sec
Main spindle motor (10 min/continuous, optional 16,000 min⁻¹): 10/6.5 HP
Through coolant
Tool breakage detection
Auto tool presetter
