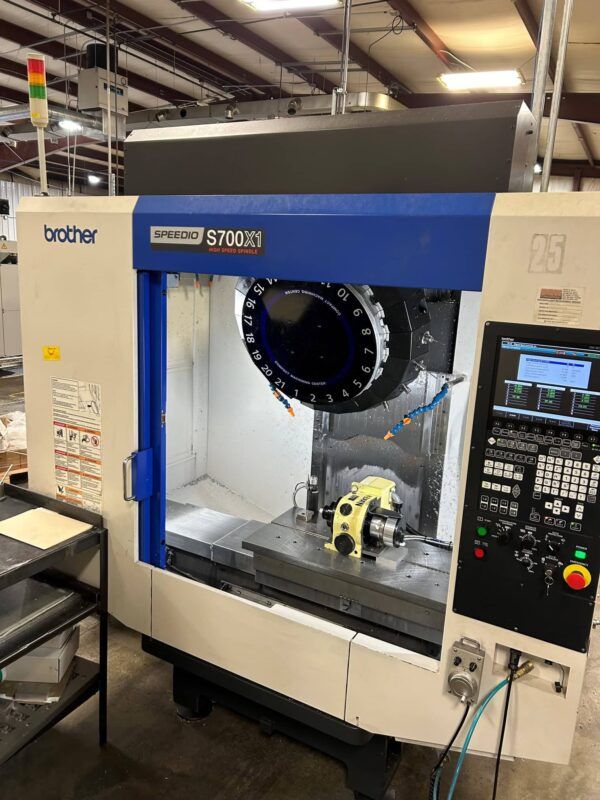

Brother SPEEDIO S700X1 3 Axis

X axis travel 27.6″
Y axis travel 15.7″
Z axis travel 11.8″
Distance tabletop to spindle nose 7.1″–18.9″
Table work area size 31.4″ × 15.7″
Max load capacity 661 lb
Rapid traverse X & Y axis 1969 ipm
Rapid traverse Z axis 2204 ipm
Spindle taper BT30
Spindle speed 27000 RPM
Tapping speed 8000 RPM
Tool pull stud MAS P30T-2
Tool storage 21
Tool change time tool to tool 0.8 s
Tool change time chip to chip 1.4 s
Motor (10 min/cont.) 11.8/8.4 HP
Axis feed motor X & Y 1.34 HP
Axis feed motor Z 2.68 HP
Machine weight 5291 lb
Floor space required 80.7″ × 87.4″ × 98.3″ H
Spindle taper air blast
Manual pulse generator
12.1″ color LCP
Heat expansion compensation system
Nikken CNCZ105 full 4th axis rotary table with tailstock
Part probe
Tool probe
Total operation time 1384 hours
