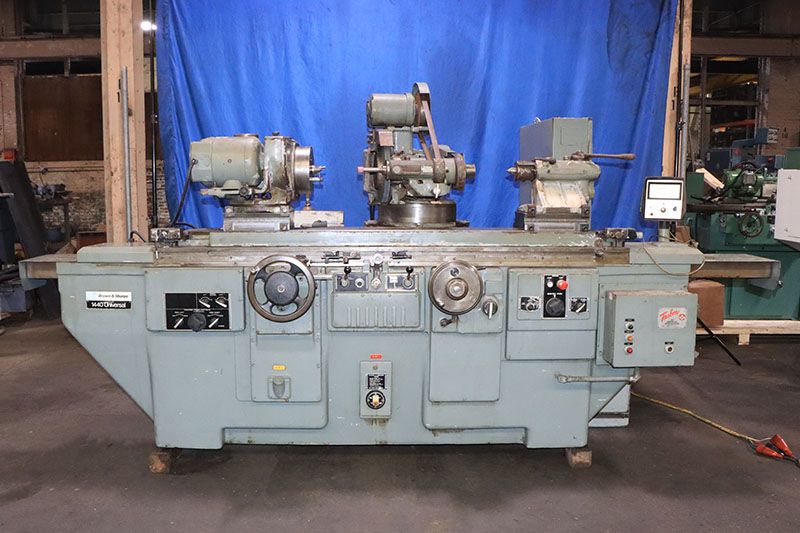

Brown & Sharpe 1440U

Swing: 14"
Swing with Riser Blocks: 21"
Distance Between Centers: 40"
Maximum Distance Between Centers: 43.75"
Table Swivel: 11° Back
Table Swivel: 3° Forward
Taper per Foot: 4.5" Back
Taper per Foot: 1" Forward
Wheelhead Motor: 5 HP
Wheelhead Spindle Speeds: 1,600 / 2,000 / 2,400 RPM
Wheel Size: 14" x 1.5" x 5"
Wheelhead Swivel: ±90°
Wheel Spindle Swivel: 90°
Headstock Motor: 1/2 HP
Headstock Swivel: 180°
Headstock Spindle Speeds: 25 – 500 RPM
Spindle Nose: A2-6
Table Speed: 3 – 150 IPM
Handwheel Travel per Revolution: 0.1" Slow
Handwheel Travel per Revolution: 1" Fast
Dwell at Table Reversal: 0 – 2.5 Seconds
Automatic Cross Feed: 0.0001" – 0.003"
Positive Stop Setting: 0.000020"
Hand Feed per Revolution: 0.1" Slow
Hand Feed per Revolution: 0.3" Fast
Hydraulic Operation
Power Table Traverse
Automatic Infeed
Power Crossfeed
Positive Crossfeed Stop
Double Swivel Wheelhead
L.H. Grinding Wheel Mounting
R.H. Grinding Wheel Mounting
Dual Dead/Live Headstock Spindle
Pull-Out Hydraulic System
3/60/230-460 Volt Motors
Swing Down I.D. Grinding Attachment
Trabon Automatic Lubrication System
3-Point Steady Rest
2-Point Steady Rest
Table Mounted Wheel Dresser
Center in Workhead
External Coolant Tank
Coolant Pump
Wired for 460 Volts
Machine Dimensions: 132" x 78.5" x 61"
Machine Weight: 9,200 lbs
Original Paint
