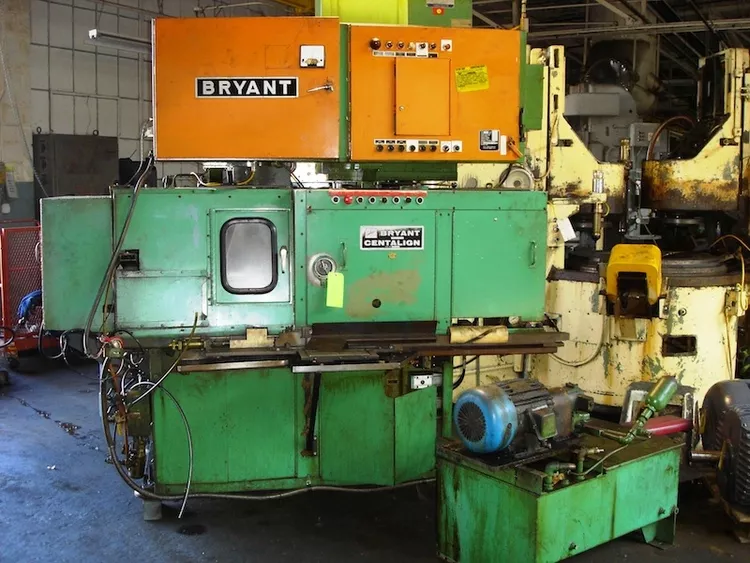

Bryant Bryant C

Maximum swing diameter: 10"
Maximum outside diameter of work (auto loading): 4"
Maximum grinding stroke: 1"
Total wheel slide stroke: 8"
Maximum cross feed (universal auto-feed): 0.045"
Maximum cross feed (cam auto-feed on diameter): 0.030"
Work head adjustable angle: 60°
Work head spindle flange diameter: ASA #2.5
Cam drive motor: 1/4 HP, AC, 1200 RPM
Cam drive motor (bore grinder): 1/3 HP, DC
Cam drive variable speed: up to 1200 RPM
Cross feed motor: DC, variable speed, max 1800 RPM
Hydraulic work drive motor: variable speed, max 2000 RPM
Hydraulic pump drive motor: 3–10 HP, AC, 1800 RPM
Work head speed: infinitely variable from 200–1500 RPM
Grinding stroke speed: up to 460 strokes per minute
Traverse stroke speed: approx. 50 feet per minute
Grinding coolant capacity: 74 gallons
Wheel spindle coolant capacity: 15 gallons
Hydraulic power unit capacity: 30 gallons
Approximate net weight: 7,000 lbs
Machine floor space without tanks: 85" x 36"
Machine floor space with coolant tank: 96" x 63"
High-frequency spindle
Hydraulic rotary diamond dresser
Cam-operated cycle
Sold as-is
