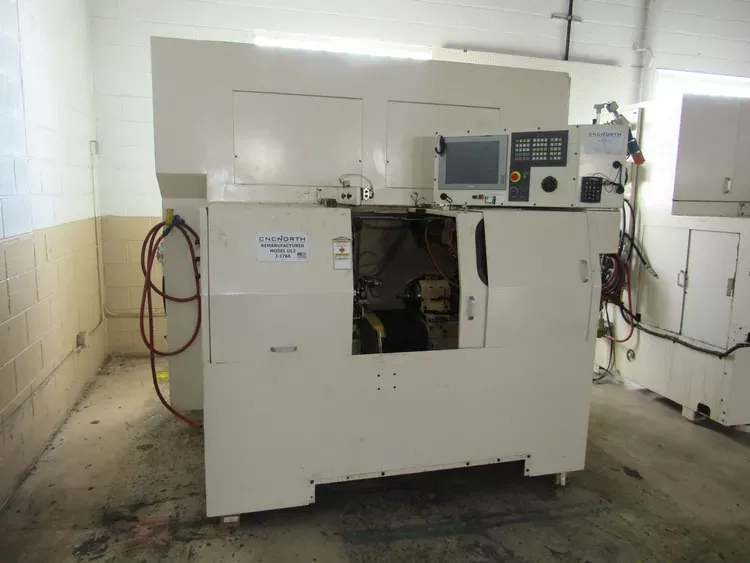

Bryant UL2

Max Z-Axis Travel: 10"
Max X-Axis Travel: 2"
Max X-Axis Feedrate: 1,800 ipm
Max Z-Axis Feedrate: 520 ipm
X-Axis Resolution: 0.000004"
Z-Axis Resolution: 0.000016"
Control: CNC
Fanuc 30i CNC Control
Proface CNC HMI
Spindle Spindle Drive
Minimum Bore: 0.4"
Swing: 7"
Max Swing (Chucker): 7"
Max Grinding Bore: 5.5"
Max Bore (Shoe Centerless): 5.5"
Max Bore Length: 3"
Stroke: 3"
Travel-Long: 10"
Workhead Swivel: -26°
Workhead Angular Adjustment: -26°
Workhead Power: 1.5 HP
Work Drive Motor: 1.5 HP
Workhead Speed: 1,850 RPM
Max Work Speed: 1,850 RPM
Max Spindle Speed: 120,000 RPM
Max X-Axis Feedrate: 1,800 ipm
Max Z-Axis Feedrate: 520 ipm
15 mm Roll Shoe
HD104 Rotary Cup Dresser
Dresser
CBN Capable Wheel
Weight: 10,500 lbs
