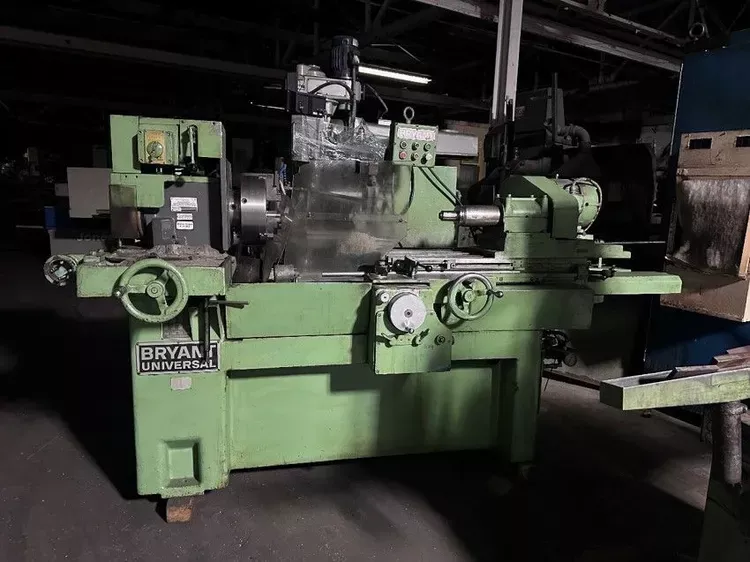

Bryant UNIVERSAL

Swing with standard chuck guard (max): 406 mm
Swing without chuck guard (max): 584 mm
Swing with workhead swiveled 90° (max): 305 mm
Angular adjustment of workhead: 90°
Wheel slide cross feed travel: 38 mm
Workhead cross slide travel: 394 mm
Table travel (max): 508 mm
Grinding stroke: 3.1 mm to 406 mm
Work spindle speed: 50–650 RPM
Optional work spindle speed: 25–325 RPM
Workhead spindle nose: 6" Type D1 ASA
Floor space (with coolant tank): 2819 mm × 20.89 mm
Machine weight: 6800 lbs

Bryant cartridge spindle
Variable speed hydraulic workhead
Separate 7.5 HP hydraulic unit
Manual single-point diamond dresser
305 mm 3-jaw chuck
Cross sliding workhead
440 V, 3-phase, 60 Hz
Attached electrical cabinet
