BTB TRO 8S 14U ISO 40 CNEL

BTB TRO 8S 14U ISO 40 CNEL
Year: 2017

Rotary transfer machine
High-precision multi-station automation
8 machining stations
14 machining units
CNC-controlled system
Likely Siemens or Fanuc control
ISO 40 tool taper interface
Simultaneous multi-axis operations
Supports drilling
Supports milling
Supports tapping
Supports turning
Automated loading system
Automated unloading system
High-pressure integrated coolant system
Meets European noise emission standards (CNEL)
High repeatability and accuracy
Continuous operation capability
Supports various part geometries and sizes
Equipped with diagnostic systems for predictive maintenance
Machine mass: 23000 kg

Includes Castelletto Uzzone ERI-2000 lifter
Model: ERI-2000
Year: 2017
Power: 2.2 kW
Lifting capacity: 2000 kg

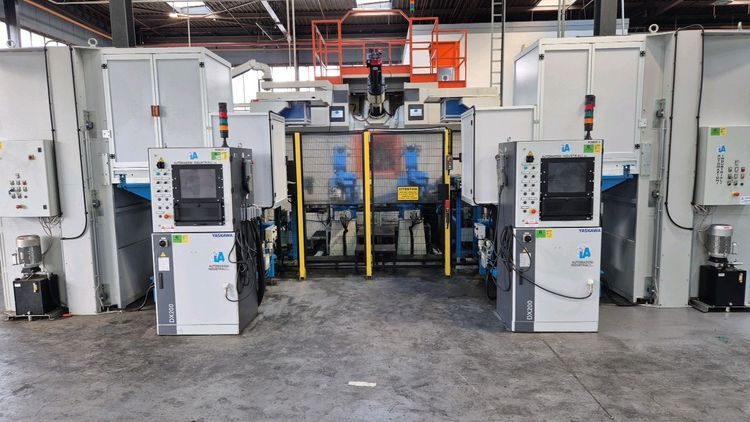

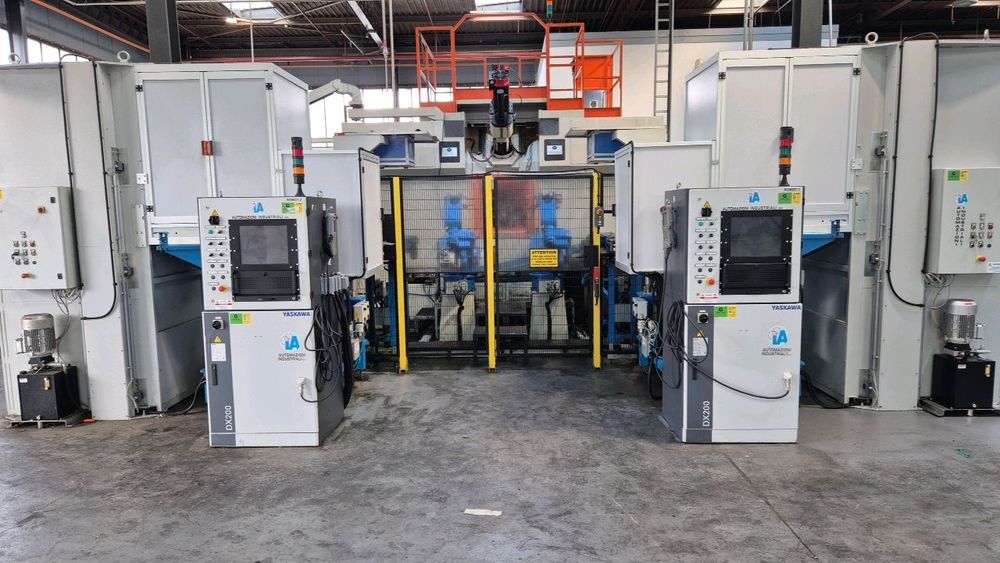

Includes robotic system by Automazione Industriali
Type: R.C.S.T./C.VIS.
Year: 2017
Dual Yaskawa Motoman MH24 robots
Payload: 24 kg per robot
Reach: 1717 mm
Repeatability: ±0.08 mm
6-axis articulated arms
Robot weight: approx. 540 kg each
Protection rating: IP67 wrist, IP54 arm

Maximum speeds:
J1: 170°/sec
J2: 170°/sec
J3: 175°/sec

Mounting options: floor, ceiling, angle
Integrated computer vision system
Synchronized dual-robot operation
Advanced control with vision feedback
