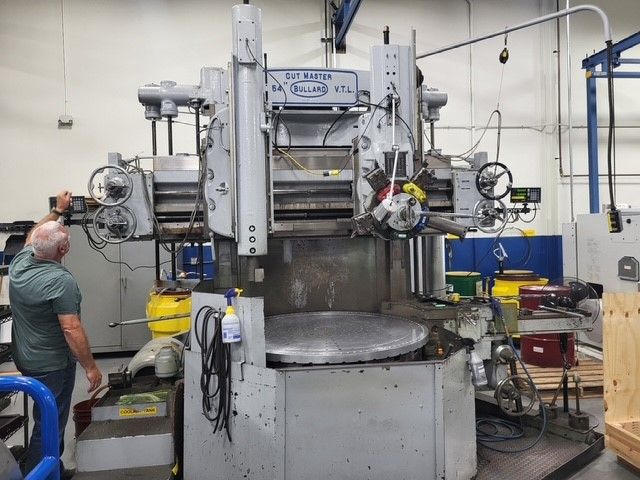

Bullard 54" CUTMASTER Chuck Diameter: 54 in

Maximum Swing with Side Head Up: 58 in
Maximum Swing with Side Head Down: 62 in
Maximum Height Under Rail: 44 in
Table Speed: 4.4–160 rpm
Feed Rate: 0.0026–0.125 ipr
Turret Vertical Travel: 30.375 in
Turret Swivel: ±30°
Ram Vertical Travel: 30.5 in
Ram Swivel: ±30°
Side Head Horizontal Travel: 27 in
Side Head Vertical Travel: 44.25 in
4-Jaw Independent Chuck
5-Sided Turret
Swiveling Ram Head
Side Head
Main Drive Motor: 40 hp
Machine Dimensions: 115 × 136 × 124 in
Overall Height: 152 in
Machine Weight: Approx. 50000 lb
