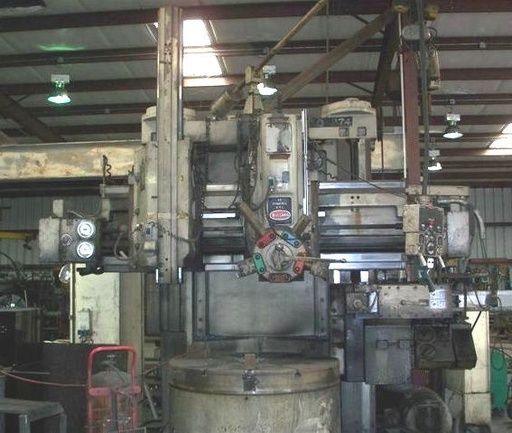

Bullard 56 Chuck diameter: 56 in

BULLARD 56
Year: 1967

Maximum swing with side head down: 68 in
Maximum swing with side head up: 62 in
Maximum height under rail: 48 in
Vertical travel of cross rail: 38 in
Vertical travel of left hand ram: 51 in
Vertical travel of right hand turret: 30.75 in
Vertical travel of side head: 46.75 in
Main motor power: 50 HP
Chuck speeds (20 speeds): 5 to 200 rpm
Approximate machine weight: 82,000 lbs
Approximate floor space required: 144 in front to back, 140 in left to right, 192 in height

Equipped with 56" 3-jaw chuck
Equipped with left hand ram
Equipped with right hand 5-sided turret
Equipped with side head
