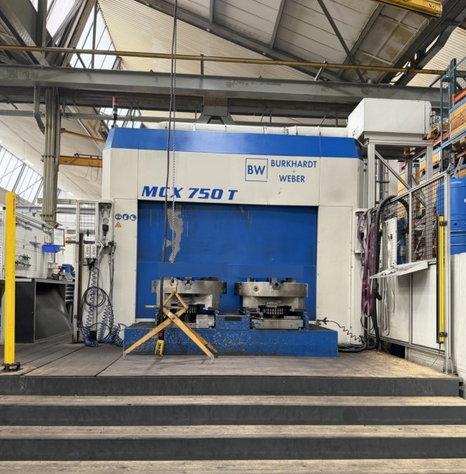

Burkhardt & Weber MCX 750HVP+T 4 Axis

x-axis travel: 1100 mm
y-axis travel: 900 mm
z-axis travel: 1250 mm
rapid traverse: 60 m/min
feed rate X/Y/Z: 1–60000 mm/min

B-axis: 360 x 0.001°
rotary table speed: 1–500 rpm
control: SIN 840D

spindle speed (gear stage 1): 20–1333 1/min
spindle speed (gear stage 2): 1333–8000 1/min
spindle power (60% / 100%): 50 / 37 kW
tool taper: SK50

tool magazine capacity: 120 positions
max tool length: 600 mm
max tool diameter: 135 mm

pallet quantity: 2
pallet size: 800 x 800 mm
table load: 1.50 t
workpiece diameter (2 vacant positions): 350 mm
