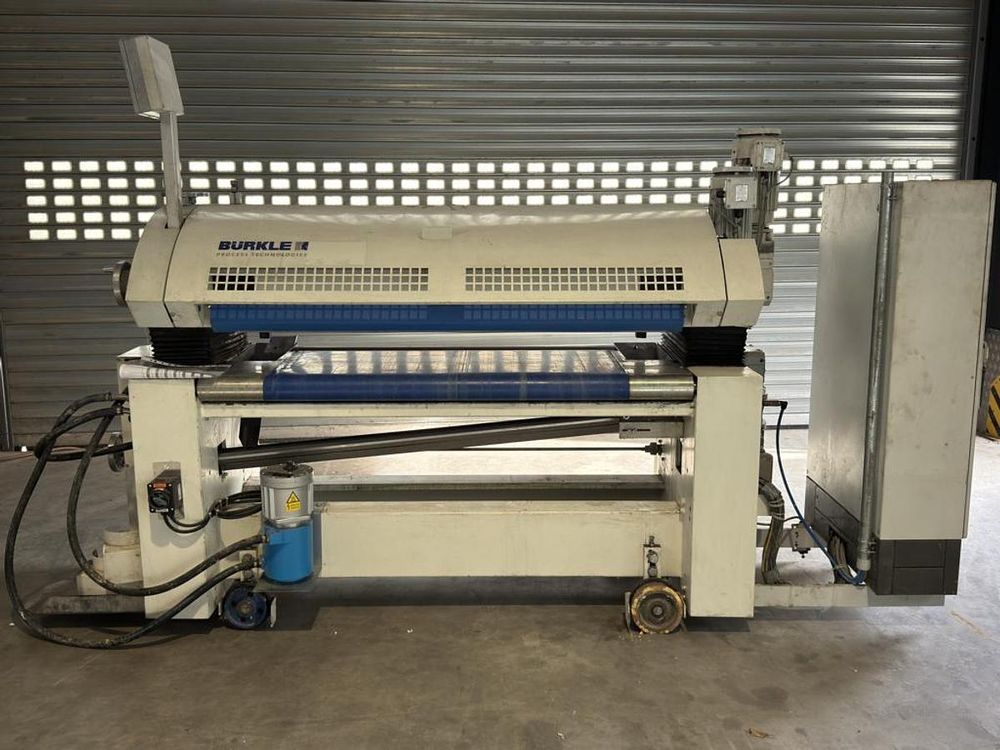

Burkle SLC

- Operator side left
- for single-sided coating of varnish
- oscillating application roll-rake

Technical data:
- Maximum working width: 1,300 mm
- Minimum workpiece length: 350 mm
- Maximum workpiece weight: 250 kg
- Conveyor belt width 1,270 mm
- Workpiece thickness 3 - 100 mm
- Installation length: 800 mm
- Width: 3,200 mm
- Coating roll, rubberized, EPDM approx. Ø: 238 mm
- Coating roll Shore hardness: 45 (can be changed)
- Dosing roll, chrome plated, Ø: 174 mm
- Counterpressure roll, rubberized, Ø: 186 mm
- Conveyor speed, adjustable from approx. 8-25 m/min.
- Working height ~ 900 mm +/- 30 mm
- Throughput height approx. 3 - 80 mm
- Compressed air 6 bar, G1/4 inch, approx. 50 NL/min.
- Operating voltage 400 V, 50 Hz, 3-phase
- Total connected load approx. 5.5 kW
- with control cabinet
- Weight approx. 1,450 kg
