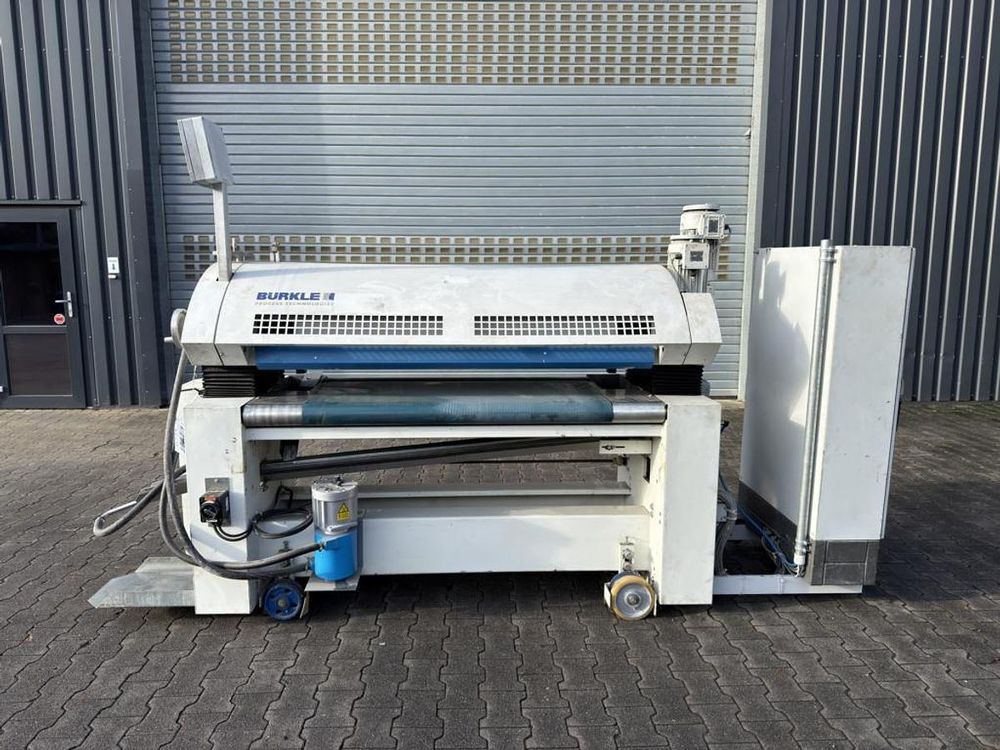

Burkle SLC

Roleduty machine
- Operating side left
- for single-sided application of paint
- oscillating application roller squeegee

Technical data:
- Maximum working width: 1,300 mm
- Minimum workpiece length: 350 mm
- Maximum workpiece weight: 250 kg
- Conveyor belt width 1,270 mm
- Workpiece thickness 3 - 100 mm
- Installation length: 800 mm
- Machine width: 3,200 mm
- Application roller, rubberized, EPDM approx. Ø: 238 mm
- Application roller Shore hardness: 45 (can be changed)
- Dosing roller, chrome-plated, Ø: 174 mm
- Counter-pressure roller, rubberized, Ø: 186 mm
- Conveying speed, adjustable from approx. 8-25 m/min.
- Working height ~ 900 mm +/- 30 mm
- Throughput height approx. 3 - 80 mm
- Compressed air 6 bar, G1/4 inch, approx. 50 NL/min.
- Operating voltage 400 V, 50 Hz, 3 phases
- Total connected load approx. 5.5 kW
- with switch cabinet
- Weight approx. 1,450 kg
