Burr Oak CFM COIL FORMING MACHINE Forms radii from 57 mm (2.25") to 457 mm (18")

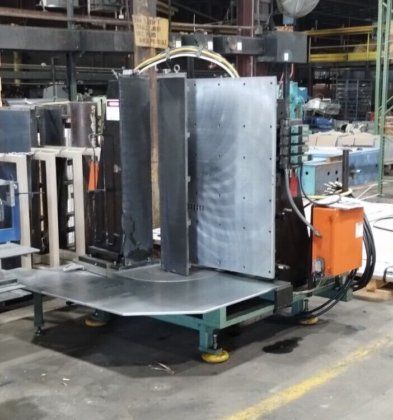

BURR OAK CFM COIL FORMING MACHINE

Forms round and flat-tube coils up to 60" wide and 3 m long
Forms up to three 90° bends or more if bends are less than 90°
Forms radii from 57 mm (2.25") to 457 mm (18")
Forms bends up to a total of 200°

Cycle time per bend after positioning: approx. 10 seconds
Production time for single-row 3-bend coil: approx. 1 minute including load/unload
Vertical arbor configuration
Distortion-free coil bending
Maintains mechanical bond between fin and tube
No hydraulics required
No compressed air required
No water required
Special voltage transformer option available

24 VDC controls
Power: 15 kW @ 0.80/0.82 PF
Machine footprint: 5.5 m (216") long × 3.5 m (135") wide × 2.4 m (95") tall
Machine weight: 2,722 kg (6,000 lbs)
Coil types: RTPF Single, 1+1 Row, 1+1+1 Row, MCHX
Coil dimensions: up to 1.5 m (60") wide, up to 3 m (118") long

Soft surface arbors to prevent fin damage
Single operator operation with cycle start button
Automatic positioning and bending sequence
Touchscreen controls with part recipes
Optional barcode scanner to prevent stock error
Optional coil loading table for continuous cycling
Option to offload to table or conveyor
Multilingual touchscreen interface configuration
Foundation information available on request
