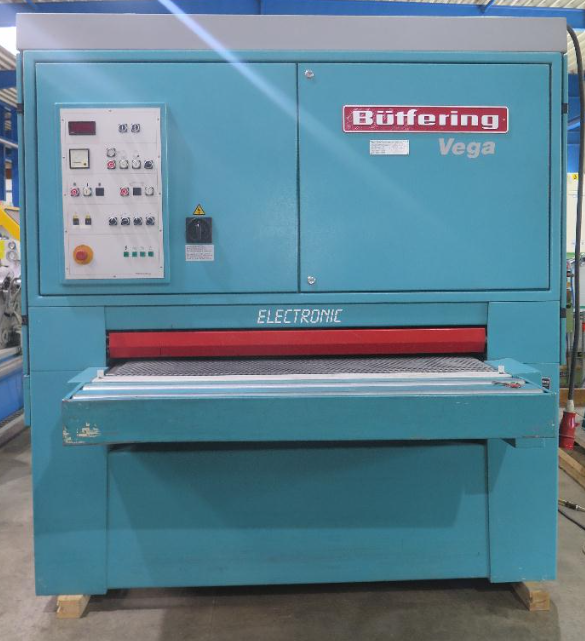

Butfering 113

Wide belt sander
Working width: 1350 mm
Maximum workpiece thickness: 160 mm

Equipped with:
1x combination unit with contact roller and segment sanding shoe
With sanding belt grain compensation and calibration device
Automatically adjusting contact roller 85° Shore
Electronically controlled pressure beam
Patented CPS system (see below) Element width 50 mm
Infinitely adjustable pressure on the workpiece edges
3-speed reversible drive motor 7.5/10/15 kW
Sanding belt speeds 4.5/9/18 m/s
Belt blowing device
Pneumatic sanding belt tensioning device

1x cleaning brush, 3 kW
Feed speed 2.5-13 m/min
Roller table at the inlet
Roller table at the outlet
Motorized height adjustment with digital display
Total connected load approx. 20 kW
With suction pipe distributor, diameter 300 mm
Machine dimensions: L 2150 x W 2100 x H 2260 mm
