Butfering Classic 111 E

Used machine
Condition: well-maintained
Constant working height
With combination unit with steel contact roller and electronic
CPS articulated pressure bar with 25 mm pitch
Grinding width: 1100 mm
Grinding belt length: 1900 mm
Workpiece thickness min./max. 3 - 150 mm
Feed speed: continuously variable 2.5 - 13 m/min
Sanding unit 11 kW

Paint package:
Infinitely variable belt drive speed via frequency converter
Belt blower device

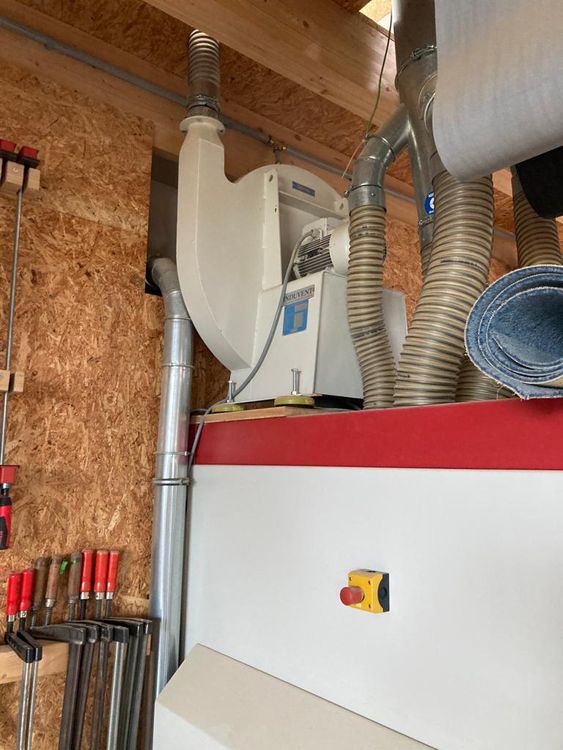

Vacuum carpet with blower

Control system:
Terminal with 50 program memory locations
Simple menu control via plain text display
Visual display of active elements during operation
Fully automatic PLC-controlled start sequence for all drives
Digital time recording
With cleaning brush
Roller table at the inlet
Roller table at the outlet
Weight 2200 kg
Extraction capacity 1850 ³/h
Extraction nozzles 1 x 180 mm, 1 x 140 mm, 2 x 100 mm
Compressed air connection 6-8 bar
Air consumption 10 l/min
