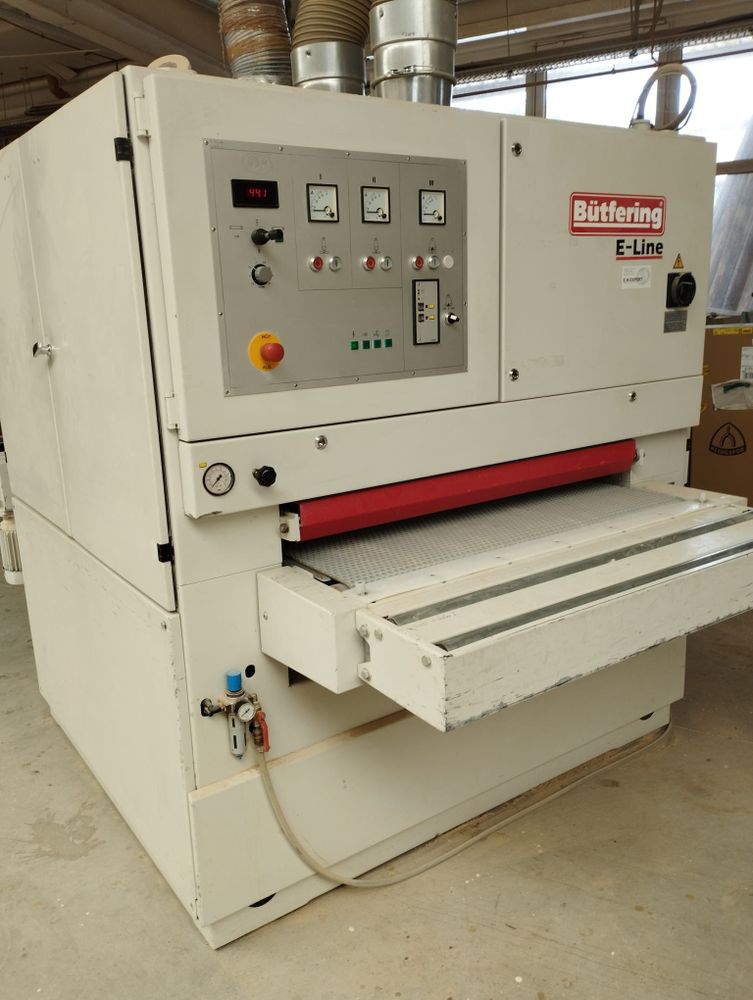

Butfering E-Line 311 RRF

Used machine
Grinding width 1100 mm
Grinding belt length 1900 mm
Workpiece thickness 3-150 mm
Infinitely variable feed speeds 2.5-13 m/min.
1 steel contact roller
1 rubber-coated contact roller
1 sanding pad unit with air cushion sanding pad

Drives:
1st sanding unit 15 kW
2nd sanding unit 15 kW
3rd sanding unit 11 kW

with table extension at the inlet
with table extension at the outlet
Total connected load 43 kW
Weight 3100 kg
Extraction capacity approx. 6750 m³/h
Air speed 20 m/s
Compressed air connection 6-8 bar
Air consumption approx. 30 l/min.
L x W x H 1750 x 2740 x 1890 mm
