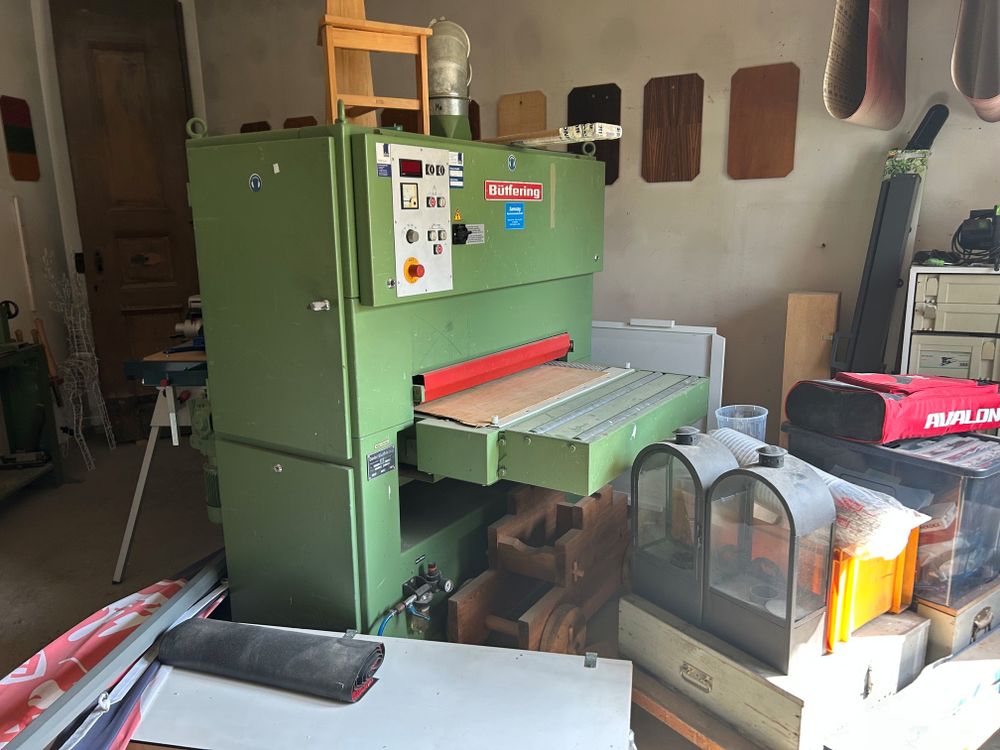

Butfering Eco 950

Wide belt sanders Used machine
Features and technical data:
- For workshops with 1 top-loading combination unit
- Working width 950 mm
- Sanding belt dimensions 970 mm wide, 1700 mm long
- 1 combined contact roller/sanding shoe unit, 7.5 kW drive motor, with 85 Shore contact roller and sanding shoe with felt pad and sliding surface
- DFL veneer sanding attachment
- With workpiece-controlled air cushion sanding shoe
- Protected sanding shoe storage inside the machine
- Sanding belt drive with automatic star-delta start and maintenance-free, wear-free electric brake
- Additional storage for another sanding tongue
- Safety shut-off when the door is opened
- Pneumatic sanding belt tensioning device
- Belt feed unit, driven by a worm gear motor, feed speeds 4 8 m/min and automatic belt drive control
- LED digital display for workpiece thickness setting
- Safety shut-off at the machine infeed in case of over-thickness workpiece
- Indicator lights to show operational readiness
- Optimally positioned dust extraction hood with 160 mm diameter port for the sanding belt
- Roller table at the infeed
- Complete pneumatic control system, including automatic pressure switch, control and monitoring devices
- All electrical switching elements – main switch, fuses, contactor control with motor protection relay, display units – are VDE compliant
- Total connected load: approx. 9 kW
- Operating voltage: 380 V, 50 Hz
- Dimensions: approx. 1500 x 1650 x 2000 mm
- Weight: approx. 1200 kg
