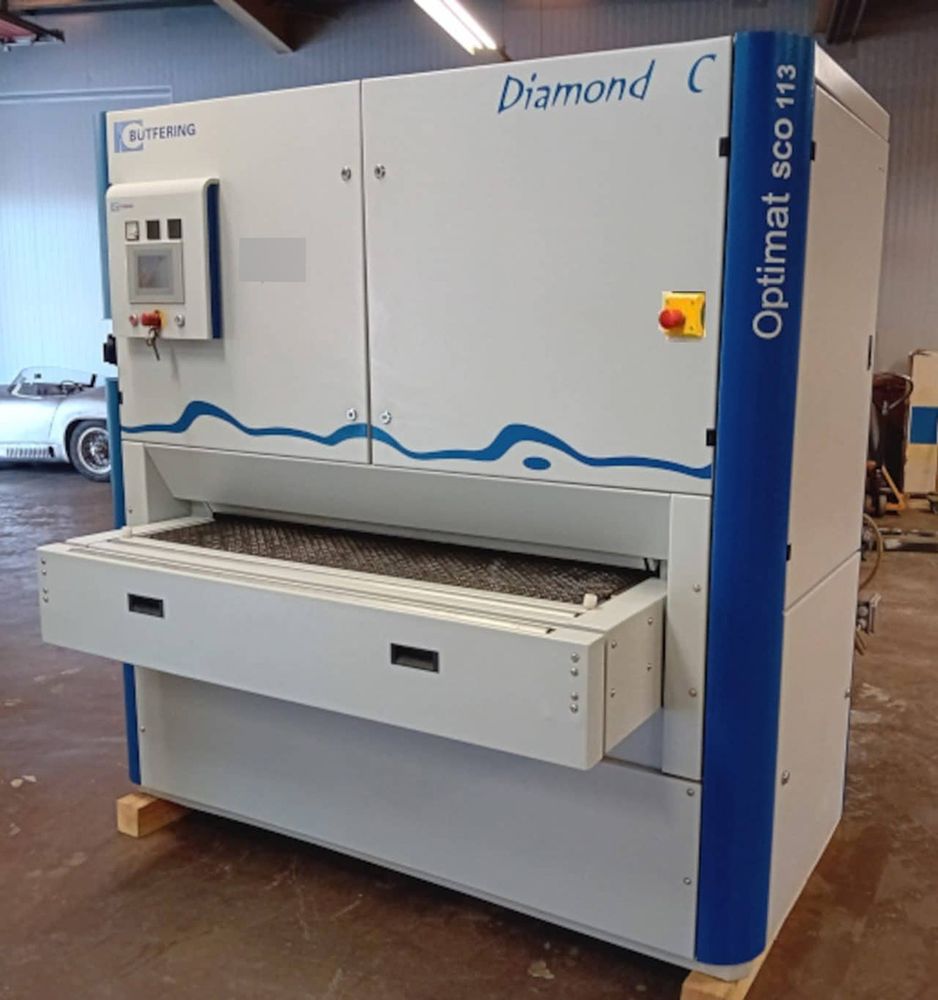

Butfering Optimat SCO 113 – Diamond C + LACK

CONSTANT TABLE MACHINE / automatic head feed
Stable frame construction with a constant workpiece infeed height of 900 mm thanks to adjustable machine head.
Workpiece thickness settings from 3 – 160 mm

1st unit: Combined steel contact roller and electronically controlled segmented sanding shoe unit CPS II system with variable sanding pressure
2nd unit: Cleaning brush unit
Stable vacuum table for large-area support
High-performance transport securing device thanks to suction clamping system – high-performance blower with control flap integrated into the machine frame.
Table segmentation can be activated via the terminal
Extendable workpiece support
Working width 1350 mm
Infinitely variable feed speed 2.5 – 13 m/min.

PAINTING SANDING PACKAGE:
Vacuum table with paint mat and 3 kW vacuum generator
Infinitely variable belt speed for paint sanding 2 – 18 m/sec.

Oscillating belt spray system for a working width of 1350 mm
Motor power 1st unit: 15 kW
Motor power 2nd unit (cleaning brush unit): 1.5 kW
14" touchscreen control panel for automating and managing all work programs
Machine is workshop overhauled and in top condition
