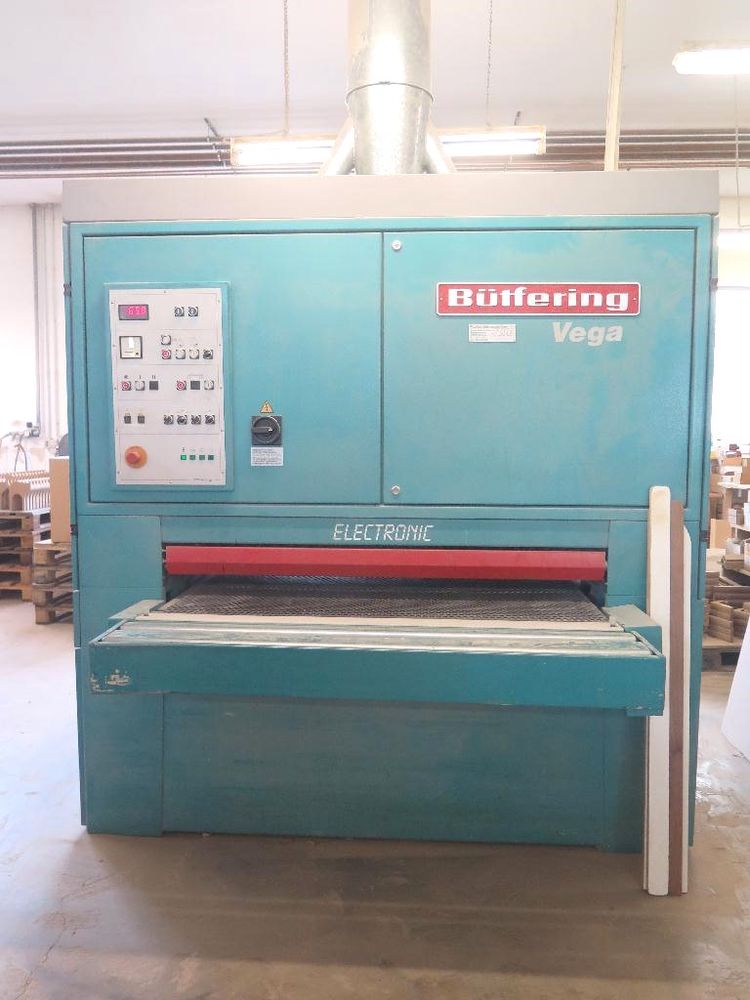

Butfering VEGA 113 E
EUROPE (Western and Northern)
Wide Belt Sander
Working width 1350 mm
Sanding belt width 1370 mm
Maximum workpiece thickness 160 mm
1 sanding unit
Combination unit with contact roller and segmented sanding pad
With sanding belt grit compensation and calibration device
Automatically adjustable contact roller 85° Shore
Electronically controlled articulated pressure beam
Patented CPS system (see below) Element width 50 mm
Continuously adjustable pressure on the workpiece edges
Triple pole-changing drive motor 7.5/10/15 kW
Sanding belt speeds 4.5/9/18 m/s
Belt blow-off device
Pneumatic sanding belt clamping device
Feed speed 2.5-13 m/min
Roller table at the inlet
Roller table at the outlet
Motorized height adjustment with digital display
Cleaning brushes 3 kW
Total connected load approx. 20 kW
CPS: (C)ompact-(P)ressure-(S)yste
A self-contained, maintenance-free system for transferring the grinding pressure to the workpiece via pressure elements (segments).
