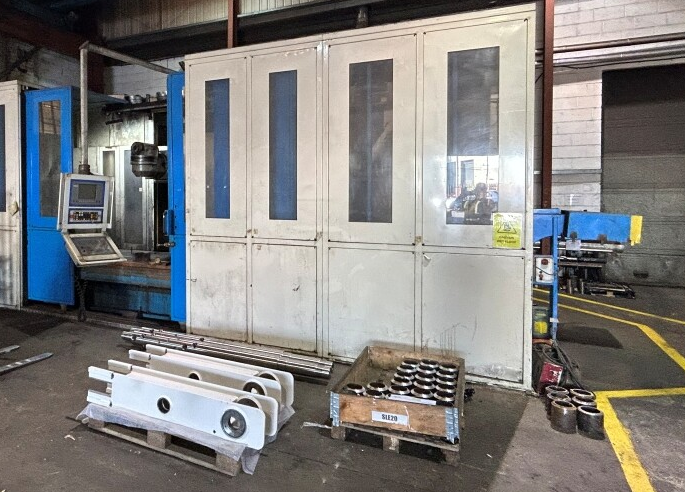

Asquith, Butler Power Centre HPT 5 Axis Travelling Table Machining Centre 3000 rpm
Ref :
2756286-3-CP
Condition :
Used
Manufacturer :
Asquith, Butler
Model :
Power Centre HPT 5 Axis Travelling Table Machining Centre
Spindle Size :
-
Spindle Speed :
3000 rpm
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel 3000 mm
Y-Axis Travel 1500 mm
Z-Axis Travel 1250 mm
Feeds 2000 mm/min
Control Heidenhain CNC
Table Size 3000 x 1250 mm
Maximum Table Load 10,000 kg
Spindle Speeds 10 – 3000 rpm
Spindle Taper 50 ISO
Spindle Motor 30 kW
Orthogonal 2.5 Degree / 2.5 Degree Auto Index A/C Positioning
50 Position ATC
Steel Telescopic Slideway Guards
Interlocked Guarding
Approximate Dimensions 8000 x 4700 x 4700 mm
