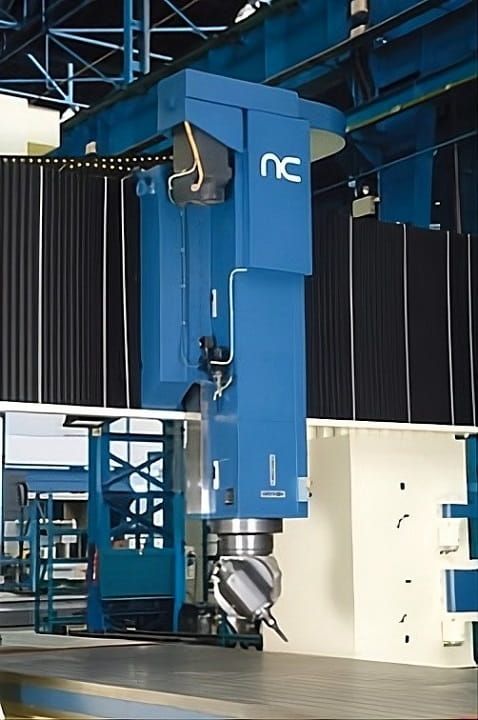

Correa FP50/50 3000 rpm

Retrofitted: 2026
Feedrate X: 7200 mm/min
Rapid feedrate Y/Z: 12000 mm/min
X axis travel: 5000 mm
Y axis travel: 3250 mm
Z axis travel: 1000 mm
Vertical capacity: 500 / 1500 mm
Control: HEIDENHAIN TNC-i640
Bridge type CNC milling machine
Hydraulic tool clamping
Electronic handwheel: HR-510
Coolant: External
Coolant: Internal high-pressure through spindle (direct spindle only)
Distance between columns: 2700 mm
Table size: 5600 × 2000 mm
T-slots: 13
T-slot size: 22 mm
Maximum table load: 25000 kg
Milling head: UAGA orthogonal auto-indexing B&C
Indexing increment: 2.5°
Spindle taper: ISO-50 (DIN69871)
Pull stud: DIN69872
Spindle speed: 3000 rpm
Spindle power: 30 kW
Milling head: FA large vertical spindle
Spindle taper: ISO-50 (DIN69871)
Pull stud: DIN69872
Spindle speed: 3000 rpm
Spindle power: 30 kW
Milling head: Direct spindle
Spindle taper: ISO-50 (DIN69871)
Pull stud: DIN69872
Spindle speed: 5000 rpm
Spindle power: 37 kW
Machine dimensions: 13200 × 5738 × 5850 mm
Machine weight: 56000 kg
Guarding: 2 sliding doors
Perimeter wire-mesh safety fence
Semi-automatic milling head changer with column hinges
Automatic tool changer: Optional
Transverse hinge-type chip conveyor
